K-1111-1111-5080B-C - Datasheet
ExaktKey
Category Information

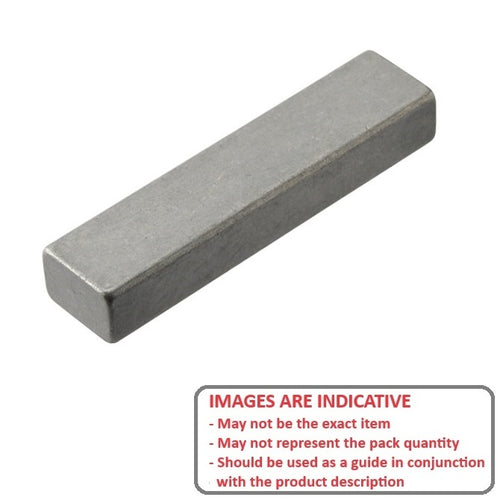

Keys - Machine - Carbon SteelCarbon Steel Machine Keys. Form A has rounded ends. Form B has square ends. Form AB has one end rounded and one end square. DIN6885
- An expanded range may be available on special order. Please enquire.
Product Data
- Width (W)
:
11.11
mm
+ 0 / - 0.051
(Equiv. 0.437 in.) - Height (h)
11.11
mm
+ 0 / - 0.051
(Equiv. 0.437 in.) - Length (L)
50.80
mm
+ / - 0.25
(Equiv. 2 in.) - Finish Plain
- Tolerance Type Standard

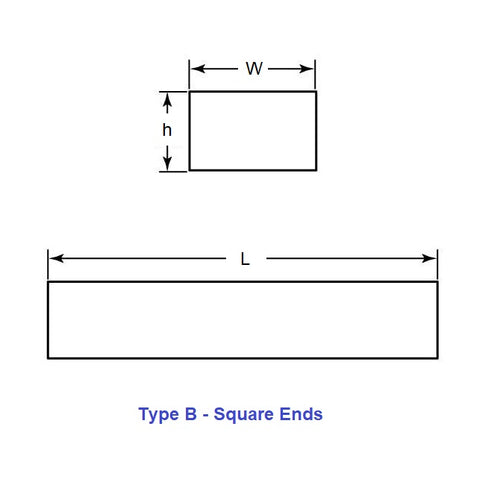

- End Type B (Square Ends)
- Material Carbon Steel C45
Product Compliance and Data
Additional Resources
Cross References
- NoCor 3004370437-2000
- 30043704372000
