CCE-01111-C - Datasheet
MBA
Category Information

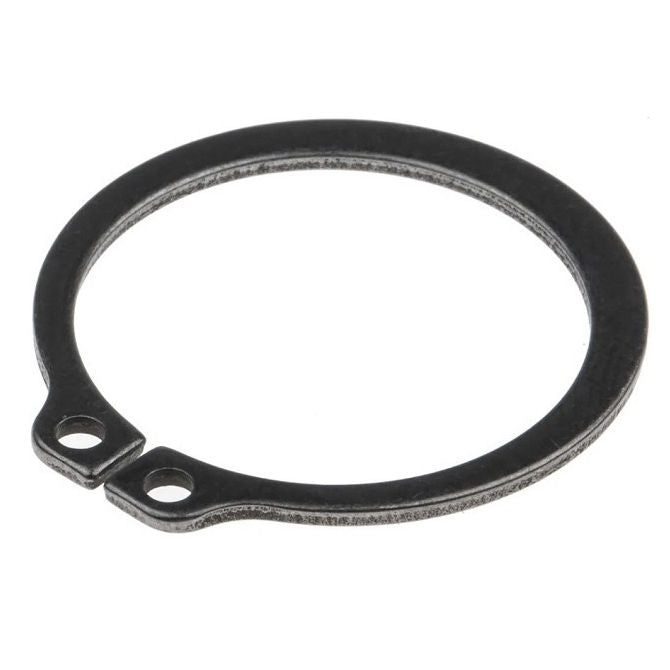

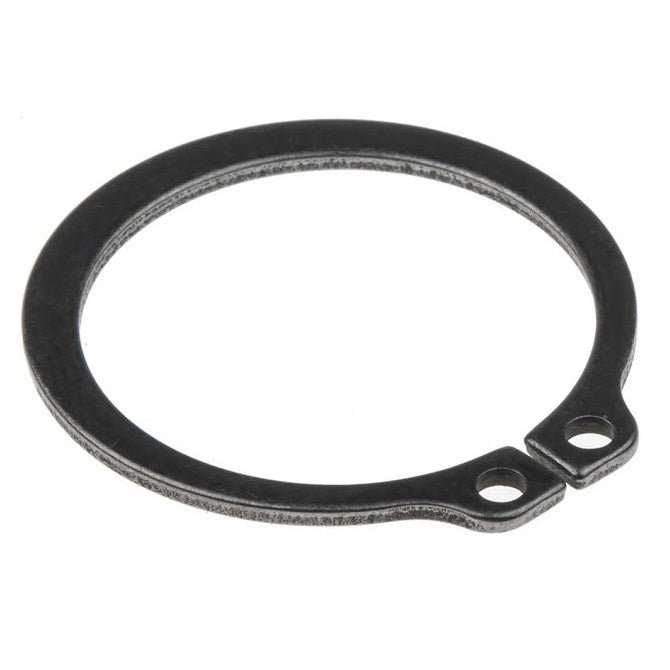

Retaining Rings - External - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
Product Data
- Shaft Diameter (Ds)
:
11.11
mm
(Equiv. 0.437 in.) - Clip Thickness (T)
0.64
mm
+/- 0.051
(Equiv. 0.025 in.) - Groove Dia. (Dg)
10.46
mm
+/- 0.051
(Equiv. 0.412 in.) - Approx. Loose Circlip ID (A) 10.03 mm
- Groove Width (W) 0.74 mm
- Clearance on Shaft (C1) 16.76 mm
- Clearance in Groove (C1) 16.26 mm
- Min. Lug Diameter (h) 0.99 mm
- Min. Extension (n) 1.07
- Standard MIL-16624
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 97633A190
- NoCor SH-043
- N14000043
- N1400-0043
- SH043
- A9Q27043
- A9Q27-043
