Miniature Bearings Australia
BL-01111-NY - Datasheet
MBA
Category Information

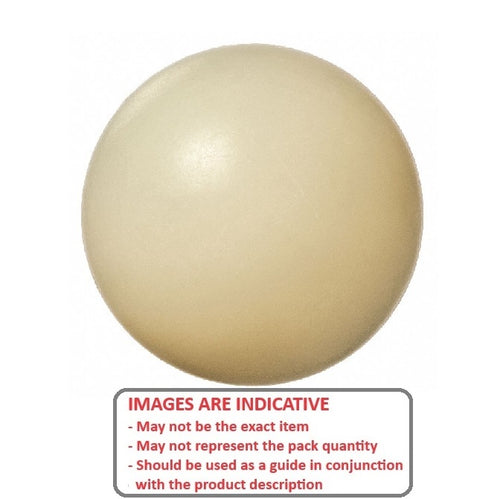

Balls - Plastic - NylonNylon Plastic Balls. Resists alkalies, weak acids and most organic solvents. Low water absorption
- Plastic ball grades are not the same as those for precision balls
- Nylon (Polyamide 6/6).
- Unpolished
- Specific Gravity: 1.14.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Diameter (D)
:
11.11
mm
+/- 0.051
(Equiv. 0.437 in.) - Material Nylon (Polyamide 6/6)
- Precision Grade 2
- Hardness 108 Rockwell R
- Properties Resists alkalies, weak acids and most organic solvents.
- Colour Off White
- Specific Gravity 1.14
- Material Nylon (Polyamide 6/6)
Product Compliance and Data
Additional Resources
Cross References
- A9P71-14
- A9P7114
