Miniature Bearings Australia
COL-01111-022-11-S3 - Datasheet
MBA
Category Information

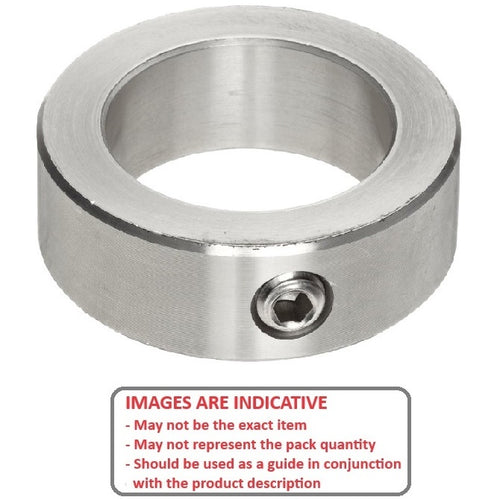

Collars - Shaft - Standard - Stainless SteelStainless Steel Standard Shaft Collars. Includes miniature precision types. 303 and 316 Types.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
- Suitable Shaft Size (d)
:
11.113
mm
(Equiv. 0.438 in.) - Outside Diameter (D)
22.20
mm
(Equiv. 0.874 in.) - Overall Width (S)
11.1
mm
(Equiv. 0.437 in.) - Screw Size 1/4-20 x 1/4
- Collar Style Plain Collar
- Material Stainless Steel 303 (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- 6462K15
- Small Parts SX-7
- SX7
- A7X2-12814
- A7X212814
