Miniature Bearings Australia
REM-111-L-PP - Datasheet
MBA
Category Information

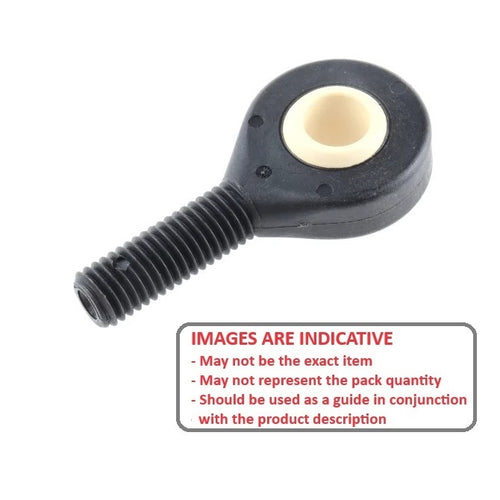

Rod Ends - Male - PlasticPlastic Male Rod Ends. Thermoplastic Body / L280(R) Polymer Ball. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.
Product Data
- Eye Size (d1)
:
11.113
mm
(Equiv. 0.438 in.) - Overall Length (L)
68.28
mm
(Equiv. 2.688 in.) - Thread Size 7/16-20 UNF Left
- Min. Thread Length (l2) 34.93 mm
- Head Width (W) 10.31 mm
- Eye Width (W1) 14.27 mm
- Head Diameter (D) 28.58 mm
- Centre Height (l1) 53.98 mm
- Grease Nipple No
- Max Angle of Pivot 22 °
- Max Torque Strength 25.00 n.m
- Material Plastic
Product Compliance and Data
Additional Resources
Cross References
- 1064K551-LEFT
- Igus KALI-07
- 1064K551LEFT
- KALI07
