REM-111-R-CB - Datasheet
MBA
Category Information

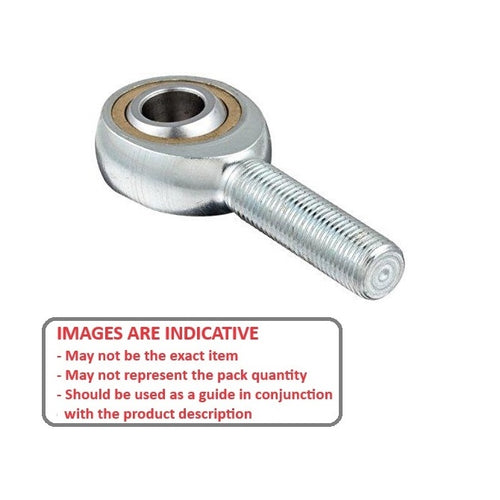

Rod Ends - Male - Steel - Bronze Lined - StandardStandard Bronze Lined Steel Male Rod Ends. Imperial and Metric / Carbon Steel. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.
Product Data
- Eye Size (d1)
:
11.113
mm
(Equiv. 0.438 in.) - Overall Length (L)
68.28
mm
(Equiv. 2.688 in.) - Thread Size 7/16-20 UNF Right
- Min. Thread Length (l2) 34.93 mm
- Head Width (W) 11.11 mm
- Eye Width (W1) 14.27 mm
- Head Diameter (D) 28.58 mm
- Centre Height (l1) 53.98 mm
- Grease Nipple No
- Material Bronze Lined Steel
Product Compliance and Data
Additional Resources
Cross References
- 6072K114-RIGHT
- ASAHI JAMB7
- KWK KMB7
- IKO POSB7
- Nachi POSB-7
- NTN SMI-B7
- SMIB7
- 6072K114RIGHT
