REF-111-L-CB - Datasheet
MBA
Category Information

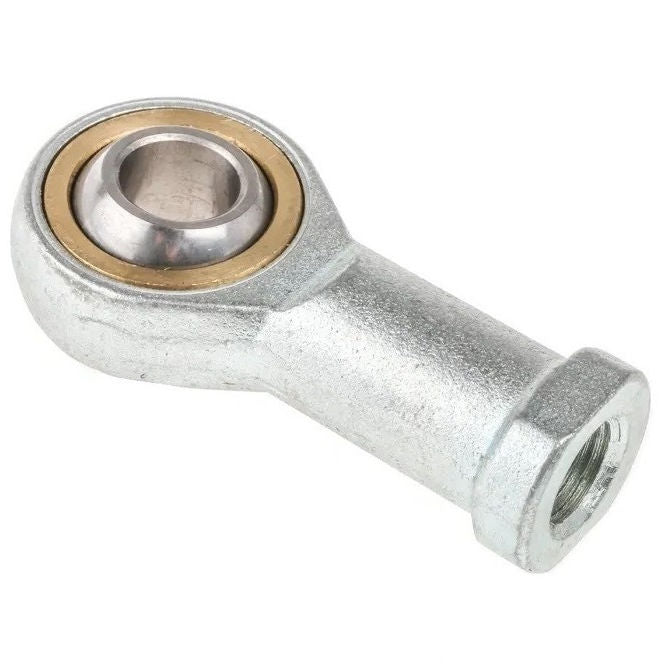

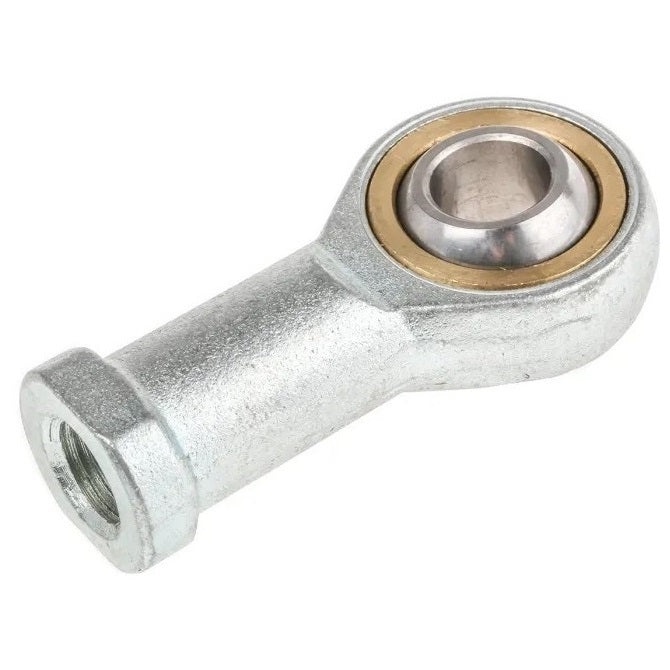

Rod Ends - Female - Steel - Plain - Bronze LinedBronze Lined Plain Steel Female Rod Ends. Imperial and Metric / Carbon Steel. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.
Product Data
- Eye Size (d1)
:
11.113
mm
(Equiv. 0.438 in.) - Overall Length (L)
60.33
mm
(Equiv. 2.375 in.) - Thread Size (T) 7/16-20 UNF Left
- Thread Length (l2) 26.97 mm
- Head Width (W) 11.11 mm
- Eye Width (W1) 14.27 mm
- Head Diameter (D) 28.58 mm
- Centre Height (l1) 46.02 mm
- Grease Nipple No
- Body Width/Flange Width(W2/D3) 15.88 / 19.05 mm
- Material Bronze Lined Steel
Product Compliance and Data
Additional Resources
Cross References
- 6072K184-LEFT
- ASAHI JAFB7L
- KWK KFB7L
- IKO PHSB7L
- Nachi PHSB-7L
- NTN SFI-B7L
- SFIB7L
- 6072K184LEFT
