PSP-111-051-C - Datasheet
MBA
Category Information

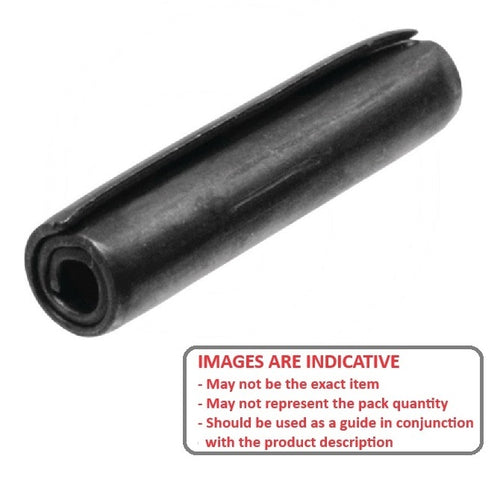

Pins - Coiled - Steel - Standard DutyStandard Duty Steel Coiled Pins. ASME B18.8.3M / ISO 8750 Standard Duty Spirol Pins. Coiled roll pin.
- An expanded range may be available on special order. Please enquire.
Product Data
- Nominal Hole Diameter
:
11.11
mm
(Equiv. 0.437 in.) - Length
50.80
mm
+/- 0.50
(Equiv. 2 in.) - Drill Size
11.11 - 11.33
mm
(Equiv. 0.437 in.) - Loose Diameter 11.48 - 11.91 mm
- ISO Standard Duty ASME B18.8.2
- Hardness RC 46-53 (HV 420 to 545)
- Material High Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor SPC-437-2000
- SPC4372000
