LYP-R2-100-059-S4 - Datasheet
MBA
Category Information

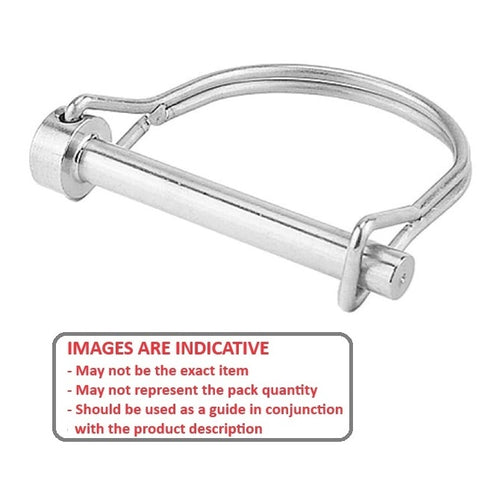

Pins - Wire Lock Lynch - Double Wire - Round - Stainless SteelStainless Steel Round Double Wire Wire Lock Lynch Pins. Also known as 3 point hitch pins, Quick Pins, Click Pins and Snapper Pins
- Spring-loaded wire loop that snaps over a pin inserted through a shaft to prevent objects from sliding off.
- Quick-release, tool-free locking mechanism used in various applications like agricultural equipment, trailers, and automotive systems.
Product Data
Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Pin Diameter (A)
:
10.00
mm
- 0.051 / - 0.178
(Equiv. 0.394 in.) - Grip Length (C)
58.65
mm
+ 0.00 / - 6.35
(Equiv. 2.309 in.) - Wire Thickness (T)
2.1
mm
(Equiv. 0.083 in.) - Clearance To Wire (E) 37.0 mm
- Pin Length (B) 65.0 mm
- Finish Passivated
- Material Stainless Steel
