BTU0010-004-F-Z-SL-FH - Datasheet
MBA
Category Information

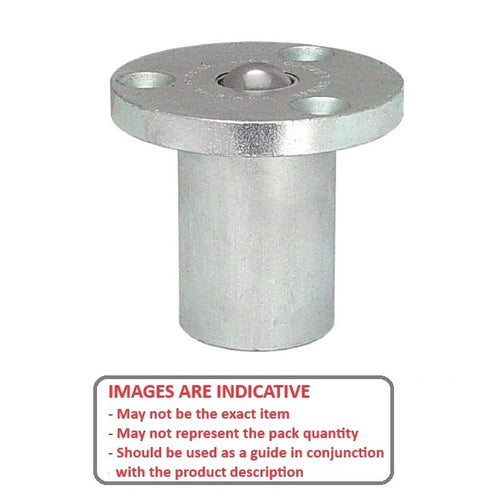

Ball Transfer Units - Spring Loaded - Flanged - Zinc PlatedZinc Plated Flanged Spring Loaded Ball Transfer Units. This is the main category in this series
- Single ball bearing units for conveyor systems
- Applications includes guillotines, presses, moulding machines, base of machines for easy handling, press brakes and shock loading.
- Max Load is applicable when used as a transfer, not as a castor
- Case: Zinc plated Mild Steel, Ball: Carbon Steel 60-66HRC
Product Data
- Supp. Load : 10 kg

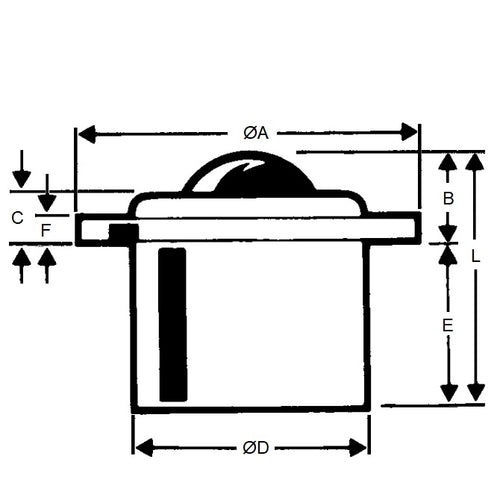

- Height from Base (B)
3.5
mm
(Equiv. 0.138 in.) - Body Diameter (D)
36.5
mm
(Equiv. 1.437 in.) - Overall Height 63.0 mm
- Ball Diameter 19.1 mm
- Body Height 36.6 mm
- Flange Diameter 66.6 mm
- Flange Thickness 7.9 mm
- Type A
- Material Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- SKF3011
- SKF-3011
- BTSU19A
- BTSU-19A
