6000-CSN-T9H-ECO - Datasheet

ECO

Category Information

Bearings - Single Row Ball - Unflanged - Precision - Ceramic Hybrid

Ceramic Hybrid Precision Unflanged Single Row Ball Bearings. Steel Races with Si3N4 Ceramic Balls

Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
Bearings with steel races and ceramic balls.
For standard bearings, the balls are usually one of the first components to show wear.
Ceramic balls are harder than steel and do not wear as easily.
Items with high speed cages have the suffixes T9H, TNH, TW or KC

Product Data

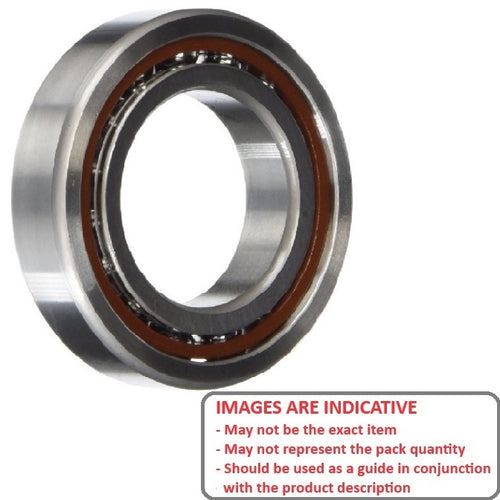

Open ceramic-hybrid bearing with a high speed polyamide retainer

ID (d) : 10.000 mm
O.D. (D) 26.000 mm
Width (B) 8.000 mm
Precision Grade Economy
Closure Type Open
Bearing Type Radial
Material Chrome Steel SAE 52100 - High Speed Polyamide Cage - Ceramic Si3N4 Balls

Lubrication Type Grease
Lubrication Name Standard Unspecified
Basic Part 6000
Limiting Speed 47120
Cage Type Polyamide
Static Load Rating KGf 152
Dynamic Load Rating KGf 351.9
Radii 0.30 mm
Inner Shoulder (UI) 12.90mm
Outer Shoulder (UO) 22.40 mm
Number of Balls 7
Clearance ECO (3 to 33)
Precision Grade ECO
Closure Type Open
Max Temperature 120 Deg. C

Country of Origin: TW

Product Compliance and Data

Additional Resources

Applications & Uses

RC Nitro Engine Parts
ASP® - 108 All Models - Replacement Bearing
ASP® - 91 Old - Front Bearing 10-26-8mm
CMB - 20 All Models - Replacement Bearing
CMB - 21 - Replacement Bearing
CMB - CAM - 90 - Replacement Bearing
CMB - CAM Marine - 45 - Replacement Bearing
CMB - H Racing - Green Head - 90 - Replacement Bearing
CMB - Valvola 3.5CC - 21 - Replacement Bearing
Enya® - 4C - 35 - Replacement Bearing
Kalistratov® - K - 45 - Replacement Bearing
Mac® - 15 - Replacement Bearing
Mac® - 45 All Models - Replacement Bearing
Mac® - 67 All Models - Replacement Bearing
Mac® - Inboard - 84 - Replacement Bearing
Magnum Power® - 120 4 Stroke - 21 - Replacement Bearing
Magnum Power® - XL - 46 - Replacement Bearing
Magnum Power® - XL - 61 - Replacement Bearing
Magnum Power® - XL 120 RFS - 61 - Replacement Bearing
Magnum Power® - XL 120-AR II - 75 - Replacement Bearing
Magnum Power® - XL 4C - 120 - Replacement Bearing
MDS - FS Pro - 46 - Replacement Bearing
Moki® - 1.35 All Models - Replacement Bearing
Moki® - 51 All Models - Replacement Bearing
Moki® - Marine - 40 - Replacement Bearing
MVVS - Glow Engine - 40 - Replacement Bearing
OS Engines® - F4 4-C - 320 - Replacement Bearing
OS Engines® - F4 4CYL - 32 - Replacement Bearing
OS Engines® - FR5 5Cylinder 4C - 40 - Replacement Bearing
OS Engines® - FS RC Surpass 4C - 61 - Replacement Bearing
OS Engines® - FS Supercharge - 120 - Replacement Bearing
OS Engines® - FS-120 II Surpass - Replacement Bearing
OS Engines® - FS-120 Non Surpass - 91 - Replacement Bearing
OS Engines® - FS-120 Surpass III With Pump - Replacement Bearing
OS Engines® - FS-120E Surpass - Replacement Bearing
OS Engines® - FSR - 50 - Replacement Bearing
OS Engines® - FSR - 90 - Replacement Bearing
OS Engines® - FSR RC LS - 61 - Replacement Bearing
OS Engines® - FSR RC W-Muffler - 40 - Replacement Bearing
OS Engines® - FSR Ring RN - 50 - Replacement Bearing
OS Engines® - FSR-M ABC RC - 50 - Replacement Bearing
OS Engines® - FT 12 Twin RC 4C - 45 - Replacement Bearing
OS Engines® - FT Twin RC 4C - 12 - Replacement Bearing
OS Engines® - FT Twin RC 4C - 120 - Replacement Bearing
OS Engines® - RX - 21 - Replacement Bearing
OS Engines® - RX-2 Cycle - 15 - Replacement Bearing
OS Engines® - RX-EFI - 140 - Replacement Bearing
OS Engines® - RX-FI - 21 - Replacement Bearing
OS Engines® - VR-DF - 21 - Replacement Bearing
OS Engines® - VR-M - 91 - Replacement Bearing
OS Engines® - VR-Marine New - 65 - Replacement Bearing
RC Showcase® - 22 - 15 - Replacement Bearing
Russian® - K - 45 - Replacement Bearing
Saito® - 160 - 130 - Replacement Bearing
Saito® - 4C Any C - 56 - Replacement Bearing
Saito® - 82 All Models - Replacement Bearing
Saito® - FA 100 - Replacement Bearing
Saito® - FA 125 - 91 - Replacement Front Bearing
Saito® - FA180 - 100 - Replacement Front Bearing
Saito® - FA182TD - 100 - Replacement Front Bearing
Saito® - Old - 45 - Replacement Bearing
Saito® - S Goldhead - 45 - Replacement Bearing
Super Tigre® - S2000 RC - 75 - Replacement Bearing
Super Tigre® - S2500 RC - 12 - Replacement Bearing
Super Tigre® - S3000 RC - 15 - Replacement Bearing
Super Tigre® - S3250 - 18 - Replacement Bearing
Thunder Tiger® - Pro - 21 - Replacement Bearing
Thunder Tiger® - RP - 50 - Replacement Bearing
Thunder Tiger® - SF - 54 - Replacement Bearing
Webra® - 40 All Models - Replacement Bearing
Webra® - Speed - 40 - Replacement Bearing

Cross References

BOCA® MR6000C-TH9-C3
MR6000CTH9C3
6000 Basic Size Ref
