6900-T9H-ECO - Datasheet
ECO
Category Information
Bearings - Single Row Ball - Unflanged - Precision - High Speed CageHigh Speed Cage Precision Unflanged Single Row Ball Bearings. This product group includes bearings with cages for high speed applications, including phenolic, nylon and polyamide.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Bearings in this group have various types of high speed cages.
- Speed ratings range from 20 percent to 80 percent increase on standard cage types.
- See individual datasheets, available on request.
- Items with high speed cages usually have the suffixes T9H, TNH, TW or KC
- This category does not include ceramic hybrid bearings with high speed cages. These are listed under Bearings - Ceramic Hybrid
Product Data

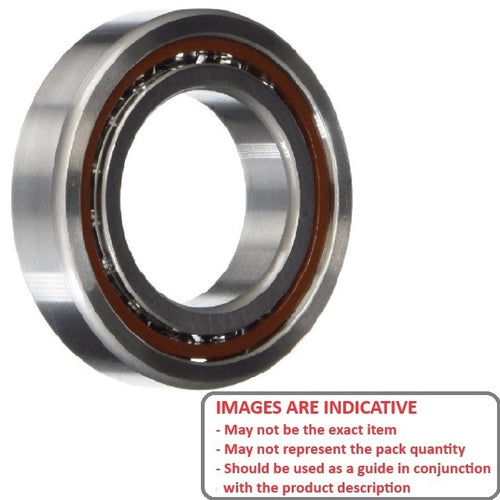

Open economy bearing with a high speed polyamide retainer
- ID (d) : 10.000 mm
- O.D. (D) 22.000 mm
- Width (B) 6.000 mm
- Precision Grade Economy
- Closure Type Open
- Bearing Type Radial
- Material Chrome Steel SAE 52100 - High Speed Polyamide Cage
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 6900
- Limiting Speed 51680
- Cage Type Polyamide
- Static Load Rating KGf 123.5
- Dynamic Load Rating KGf 261.2
- Radii 0.30 mm
- Inner Shoulder (UI) 13.20mm
- Outer Shoulder (UO) 19.37 mm
- Number of Balls 9
- Clearance ECO (3 to 33)
- Precision Grade ECO
- Closure Type Open
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Nitro Engine Parts
- ASP® - 4C - 80 - Replacement Bearing
- ASP® - 61 - Front Bearing
- ASP® - 61 All Models - Replacement Bearing
- ASP® - 75 - Front Bearing
- ASP® - 75 All Models - Replacement Bearing
- Enya® - 2C - 45 - Replacement Bearing
- Enya® - 40 - Replacement Rear Bearing
- Enya® - 46 - 2 Stroke - Replacement Rear Bearing
- Enya® - 46 - 4 Stroke Old - Replacement Rear Bearing
- Enya® - 4C - Old - 90 - Replacement Bearing
- Jett® - Fan Jet - 25 - Replacement Bearing
- Jett® - Fire - 40 - Replacement Bearing
- Jett® - Fire - 50 - Replacement Bearing
- Jett® - Fire - 95 - Replacement Bearing
- Jett® - Heli - 46 - Replacement Bearing
- Jett® - Heli - 90 - Replacement Bearing
- Jett® - Heli - 95 - Replacement Bearing
- Jett® - Sport - 105 - Replacement Bearing
- Jett® - Sport - 12 - Replacement Bearing
- Jett® - Sport - 40 - Replacement Bearing
- Jett® - Sport - 46 - Replacement Bearing
- Jett® - Sport - 50 - Replacement Bearing
- Jett® - Sport - 65 - Replacement Bearing
- Magnum Power® - FS-AR 4C - 28 - Replacement Bearing
- Magnum Power® - XL - 52 - Replacement Bearing
- Magnum Power® - XL - 53 - Replacement Bearing
- Magnum Power® - XL 91 RFS - 80 - Replacement Bearing
- Magnum Power® - XL70RFS - 91 - Replacement Bearing
- MDS - 60 - Replacement Bearing
- Moki® - C - 120 - Replacement Bearing
- Moki® - Sport - 40 - Replacement Bearing
- MVVS - Twin - 40 - Replacement Bearing
- Norvel® - 15 All Models - Replacement Bearing
- Rossi® - New - 80 - Replacement Bearing
- Super Tigre® - RI - 61 - Replacement Bearing
- Super Tigre® - X - 60 - Replacement Bearing
- Super Tigre® - X15 - Replacement Rear Bearing
Cross References
- BOCA® MR6900-TH9-C3
- MR6900TH9C3
- 6900TW-C3-P13
- 6900TWC3P13
- 6900 Basic Size Ref
