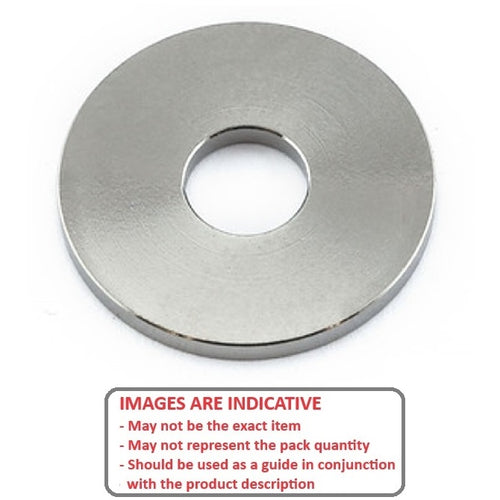

CP Grade 1 Titanium Commercial Flat Washers. Commercially Pure CP1 Titanium Grade 1 flat washers. Tensile Strength 24.6 kgf/mm². Yield Strength 17.6 kgf/mm². Elongation 24 Percent.

• Flat washers are available in many different materials, and can be used for spacing and shimming nuts and bolts, bearing shaft and all types of mechanical applications. An expanded range may be available on special order. Please enquire.
• Flat plain washers distrubute the load of screws and other fasteners, which prevents the fastener from indenting the material being fastened. Commercial washers have wide tolerances, whilst precision washers have precise tolerances.

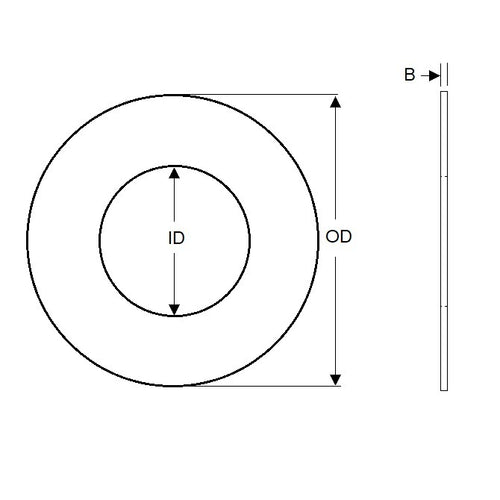

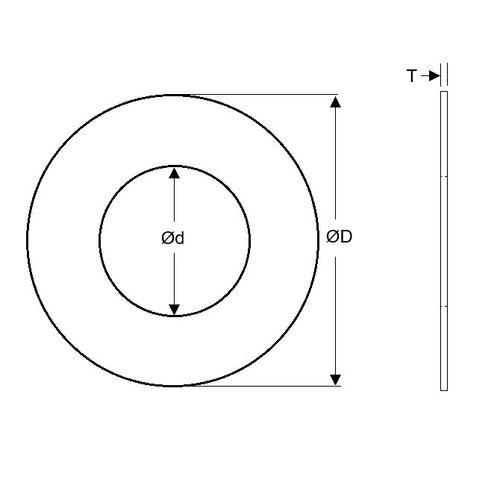

• Washers also increase the surface area, reducing the risk of loosening. Note that the Nominal ID is the shaft, bolt or screw size that the washer is designed to fit over. The washer ID will have clearance on that size. See tolerances and standards listed.
• Commercially pure for general industrial corrosion applications. UNS R50250.
• Please note! Tolerances for commercial grade washers are much larger than for precision washers. Widely used in power generation, chemical processing, aerospace and medical applications.
• Composition Percentage: Al 0, V 0, N 0.03, C 0.08, H 0.015, Fe 0.2, O 0.18, Ti Balance
