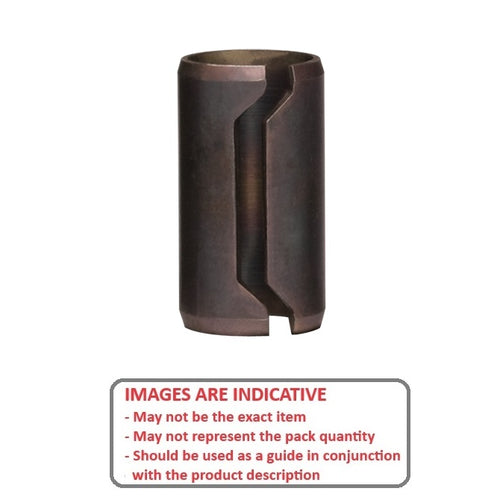

Pins - Dowel BushingsDowel Bushings Pins. Series DB100 Spirol
- An expanded range may be available on special order. Please enquire.
- Spring Steel.
- Precision rolled bushes manufactured from spring steel.
- Designed to eliminate the need for separate dowling where two components are to be located accurately together and fastened with bolts.
- They are available for use with bolts from M5 to M12.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Suitable Bolt Size
:
10.00
mm
(Equiv. 0.394 in.) - Length
20.00
mm
+ 0.0 / - 1.0
(Equiv. 0.787 in.) - Rec. Hole Diameter Min
12.50
mm

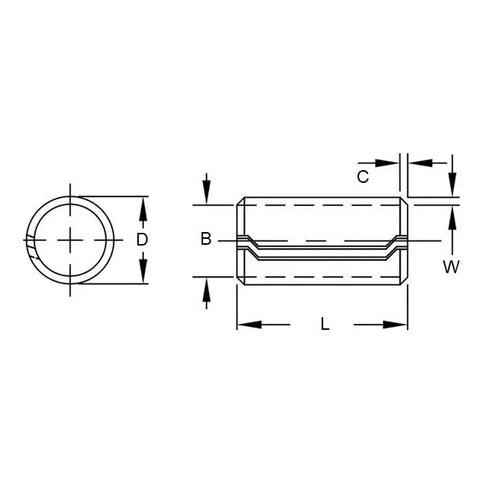

(Equiv. 0.492 in.) - Unassembled Diameter (D) Min 12.75 mm
- Unassembled Diameter (D) Max 13.01 mm
- Wall Thickness 1.07 mm
- Rec. Hole Diameter Max 12.63 mm
- Minimum Single Shear 28.50 kN
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- DB10-19
- DB1019
