6700A-2RS-ECO - Datasheet
ECO
Category Information
Bearings - Single Row Ball - Unflanged - Precision - Chrome SteelChrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data

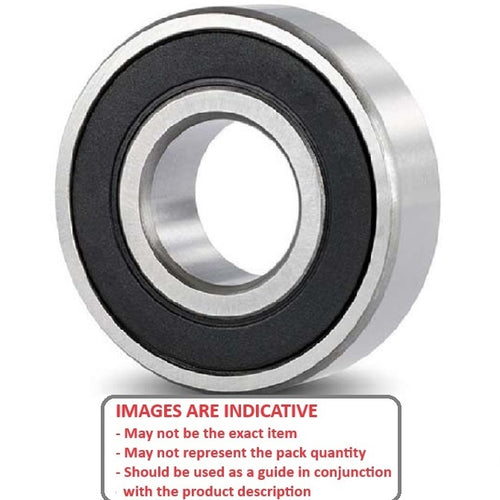

Double black rubber sealed economy bearing
- ID (d) : 10.000 mm
- O.D. (D) 15.000 mm
- Width (B) 4.000 mm
- Precision Grade Economy
- Closure Type 2RS
- Bearing Type Radial
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 6700A
- Limiting Speed 9690
- Cage Type Standard
- Static Load Rating KGf 41.8
- Dynamic Load Rating KGf 82.6
- Radii 0.15 mm
- Inner Shoulder (UI) 11.21mm
- Outer Shoulder (UO) 14.20 mm
- Number of Balls 11
- Clearance ECO (3 to 33)
- Precision Grade ECO
- Closure Type 2RS
- Max Temperature 80 Deg. C
