6700A-2RB-ECO - Datasheet

ECO

Category Information

Bearings - Single Row Ball - Unflanged - Precision - Chrome Steel

Chrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.

  • Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
  • Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
  • They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
  • Standard single row radial ball bearings.

Product Data

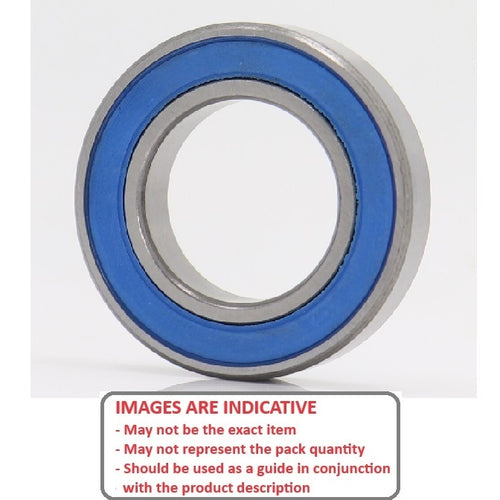

Deleted Item. Available while stocks last. Double blue rubber sealed economy bearing

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

  • ID (d) : 10.000 mm
  • O.D. (D) 15.000 mm
  • Width (B) 4.000 mm
  • Precision Grade Economy
  • Closure Type 2RB
  • Bearing Type Radial
  • Material Chrome Steel SAE 52100
  • Lubrication Type Grease
  • Lubrication Name Standard Unspecified
  • Basic Part 6700A
  • Limiting Speed 12825
  • Cage Type Standard
  • Static Load Rating KGf 41.8
  • Dynamic Load Rating KGf 82.6
  • Radii 0.15 mm
  • Inner Shoulder (UI) 11.21mm
  • Outer Shoulder (UO) 14.20 mm
  • Number of Balls 11
  • Clearance ECO (3 to 33)
  • Precision Grade ECO
  • Closure Type 2RB
  • Max Temperature 80 Deg. C
Country of Origin: TW

Product Compliance and Data

Additional Resources

Applications & Uses

  • RC Car Parts
  • Academy® & MRC® - Q-Tee Coupe - Replacement Bearing
  • Academy® & MRC® - RT-Sport RTR - Replacement Bearing
  • Academy® & MRC® - STR-4 1/10 Scale - Replacement Bearing
  • CEN - Fun Factor MT2 - Replacement Bearing
  • CEN - Magnum NX - Replacement Bearing
  • CEN - MT2 Truck - Replacement Bearing
  • CEN - Talon NX - Replacement Bearing
  • Corally® - Assassin Mid Motor and Stock Option - Replacement Bearing
  • Corally® - Assassin Modified - Spur Pulley - Replacement Bearing
  • Corally® - C4 - Replacement Bearing
  • Corally® - C4.1 - Replacement Bearing
  • Corally® - Mini Assassin - Replacement Bearing
  • Corally® - RDX - Replacement Bearing
  • Corally® - RDX - US Carpet Spec Edition - Replacement Bearing
  • Duratrax® - Street Force GP RTR - Replacement Bearing
  • Duratrax® - Street Force GP2 and RTR - Replacement Bearing
  • FSR - Bullet Electric - Replacement Bearing
  • FSR - Bullet Modified Losi - Replacement Bearing
  • GS General Silicone - Vision Pro - Replacement Bearing
  • Hobao® - Hyper GPX4 - Replacement Bearing
  • Hot Bodies® - Cyclone - Replacement Bearing
  • HPI - Baja 5B - Replacement Bearing
  • HPI - Micro RS4 RTR3 - Replacement Bearing
  • HPI - MT2 18SS Nitro - Replacement Bearing
  • HPI - MT2 Nitro - Replacement Bearing
  • HPI - Nitro Mini RS4 - Replacement Bearing
  • HPI - Nitro Race RS4 MT - Replacement Bearing
  • HPI - Nitro RS4 - Replacement Bearing
  • HPI - Nitro RS4 2 - Replacement Bearing
  • HPI - Nitro RS4 3 Evo RTR - Replacement Bearing
  • HPI - Nitro RS4 3 RTR - Replacement Bearing
  • HPI - Nitro RS4 MT - Replacement Bearing
  • HPI - Nitro RS4 Sport - Replacement Bearing
  • HPI - R40 - Replacement Bearing
  • HPI - R40 With Clutch Bell And Steering - Replacement Bearing
  • HPI - RS4 - Replacement Bearing
  • HPI - RS4 Mini - Replacement Bearing
  • HPI - RS4 Mini Pro - Replacement Bearing
  • HPI - RS4 MT - Replacement Bearing
  • HPI - RS4 Nitro RaceR 2 Car - Replacement Bearing
  • HPI - RS4 Nitro RTRSuper Nitro RAll - Replacement Bearing
  • HPI - RS4 Nitro Rush - Replacement Bearing
  • HPI - RS4 Pro - Replacement Bearing
  • HPI - RS4 Pro 2 With Steering - Replacement Bearing
  • HPI - RS4 Pro 3 - Replacement Bearing
  • HPI - RS4 Pro 4 - Replacement Bearing
  • HPI - RS4 Pro Sport - Replacement Bearing
  • HPI - RS4 Pro3 Spec - Replacement Bearing
  • HPI - RS4 RaceR 2 - Replacement Bearing
  • HPI - RS4 Rally - Replacement Bearing
  • HPI - RS4 RTR 3 Type SS - Replacement Bearing
  • HPI - RS4 Sport 2 Complete Kit - Replacement Bearing
  • HPI - RTR Sprint - Replacement Bearing
  • HPI - Rush Evo - Replacement Bearing
  • HPI - Super Nitro RS4 - Replacement Bearing
  • HPI - Super Nitro RS4 Rally - Replacement Bearing
  • Kawada® - SV10GT - Replacement Bearing
  • Kyosho® - EP Ultima® RB Type R - Replacement Bearing
  • Kyosho® - FW-05 Foam Tyre Special Chassis - Replacement Bearing
  • Kyosho® - FW-05R - Replacement Bearing
  • Kyosho® - FW-05R INDIV. Upgrade - Replacement Bearing
  • Kyosho® - Giga Crusher - Replacement Bearing
  • Kyosho® - Giga Crusher SF - Replacement Bearing
  • Kyosho® - Laser ZX5 Complete - Replacement Bearing
  • Kyosho® - Laser ZX5 Transmission Only - Replacement Bearing
  • Kyosho® - Mad Armour - Replacement Bearing
  • Kyosho® - Mad Force RTR - Replacement Bearing
  • Kyosho® - Ultima® ST GP Evolution Type R - Replacement Bearing
  • Kyosho® - Ultima® ST Truck - Replacement Bearing
  • Kyosho® - Ultima® ST Truck With Steering - Replacement Bearing
  • Kyosho® - V-One RR - Replacement Bearing
  • Kyosho® - V-One RR Evolution - Replacement Bearing
  • Kyosho® - V-One RRR - Replacement Bearing
  • Kyosho® - V-One S 2 Speed - Replacement Bearing
  • Kyosho® - ZX-5 1/10 - Replacement Bearing
  • Mugen® - MRX-3 1/8 Scale - Replacement Bearing
  • Mugen® - MRX-4 - Replacement Bearing
  • Mugen® - MRX-4R - Replacement Bearing
  • Mugen® - MTX-2 - Replacement Bearing
  • Mugen® - MTX-2 4-WD - Replacement Bearing
  • Mugen® - MTX-3 - Replacement Bearing
  • Mugen® - MTX-3 Prospect - Replacement Bearing
  • Mugen® - MTX-4 - Replacement Bearing
  • Mugen® - Prime 12 - Replacement Bearing
  • NEO - 4WD Sport - Replacement Bearing
  • NEO - T21 Nitro - Replacement Bearing
  • NEO - T21 Nitro 4WD Pro - Replacement Bearing
  • Ofna® - CD3 Pro RTR - Replacement Bearing
  • Ofna® - CD3 Sport RTR - Replacement Bearing
  • Ofna® - Nitro Mini Colt - Replacement Bearing
  • Ofna® - Nitro OB4 - Replacement Bearing
  • Ofna® - Z-10 Nitro - Replacement Bearing
  • RC Lab® - 7 EVEN 6.0 Electric - Replacement Bearing
  • RD Logistics - Mongoose - Replacement Bearing
  • Schumaker® - 21XS - Replacement Bearing
  • Schumaker® - Axis Touring Car - Replacement Bearing
  • Schumaker® - Cat 1998 - 2000 - Replacement Bearing
  • Schumaker® - Cat 2000 - Replacement Bearing
  • Schumaker® - Cat 2000 SE - Replacement Bearing
  • Schumaker® - Cat 3000 - Replacement Bearing
  • Schumaker® - Cat 3000 With Steering - Replacement Bearing
  • Schumaker® - Cougar 2000 - Replacement Bearing
  • Schumaker® - Cougar 2000 1995 Team Car - Replacement Bearing
  • Schumaker® - Fire Blade 2000 - Replacement Bearing
  • Schumaker® - FireBlade Evo - Replacement Bearing
  • Schumaker® - Fusion - Replacement Bearing
  • Schumaker® - Fusion 21 - Replacement Bearing
  • Schumaker® - Fusion R12 - Replacement Bearing
  • Schumaker® - Menace 21 - Replacement Bearing
  • Schumaker® - MI2 - Replacement Bearing
  • Schumaker® - MI2 EC - Replacement Bearing
  • Schumaker® - Mission - Replacement Bearing
  • Schumaker® - Mission With Steering - Replacement Bearing
  • Schumaker® - Nitro Fusion 21 and RTR - Replacement Bearing
  • Schumaker® - Nitro Storm 10 - Replacement Bearing
  • Schumaker® - SST 2000 98 - Replacement Bearing
  • Schumaker® - SST 2000 99 - Replacement Bearing
  • Schumaker® - SST 2000 Pro - Replacement Bearing
  • Schumaker® - SST Axis 2 - Replacement Bearing
  • Schumaker® - SST Pro Axis - Replacement Bearing
  • Schumaker® - Storm Truck 2000 - Replacement Bearing
  • Serpent® - 710 1-10TH Gas Sedan - Replacement Bearing
  • Serpent® - Freedom T1 - Replacement Bearing
  • Tamiya® - 415MSX - Replacement Bearing
  • Tamiya® - 911 GTI 1-8 Gas - Replacement Bearing
  • Tamiya® - Alfa Romeo - Replacement Bearing
  • Tamiya® - AMG Merceded C-Class D1 - Replacement Bearing
  • Tamiya® - AMG Merceded C-Class D2 - Replacement Bearing
  • Tamiya® - BMW 318 SI - Replacement Bearing
  • Tamiya® - DJ TRF 414 Pro Module Suspension - Replacement Bearing
  • Tamiya® - F Pro - Replacement Bearing
  • Tamiya® - F201 Complete Kit - Replacement Bearing
  • Tamiya® - F201 Outdrive Only - Replacement Bearing
  • Tamiya® - Honda Civic FWD - Replacement Bearing
  • Tamiya® - Honda CRV - Replacement Bearing
  • Tamiya® - Jacos Mugen - Replacement Bearing
  • Tamiya® - Jeep Wrangler - Replacement Bearing
  • Tamiya® - Levin FWD - Replacement Bearing
  • Tamiya® - Merceded 1/8 Gas - Replacement Bearing
  • Tamiya® - Merceded CLK - DTM AMG 2002 - Replacement Bearing
  • Tamiya® - Mitsubishi Pajero - Replacement Bearing
  • Tamiya® - Mitsubishi XB Pajero - Replacement Bearing
  • Tamiya® - Mitsubishi XB Pajero Rally SPO - Replacement Bearing
  • Tamiya® - New Beetle - Replacement Bearing
  • Tamiya® - New Super Beetle Upgrade - Replacement Bearing
  • Tamiya® - Nitro Force - Replacement Bearing
  • Tamiya® - Nitro Thunder NDF-01 - Replacement Bearing
  • Tamiya® - Nitro Thunder XB RTR - Replacement Bearing
  • Tamiya® - Opel Calibra - Replacement Bearing
  • Tamiya® - Porsche Taisin - Replacement Bearing
  • Tamiya® - Renault Clio Williams - Replacement Bearing
  • Tamiya® - Supra Grand National - Replacement Bearing
  • Tamiya® - T-05 Upgrade - Replacement Bearing
  • Tamiya® - TA-05 - Replacement Bearing
  • Tamiya® - TAO-3 Series - Replacement Bearing
  • Tamiya® - TAO4 Complete - Replacement Bearing
  • Tamiya® - TB Evolution III - Replacement Bearing
  • Tamiya® - TB Evolution IV 4Evo 4 - Replacement Bearing
  • Tamiya® - TB-02 - Replacement Bearing
  • Tamiya® - Terra Crusher - Replacement Bearing
  • Tamiya® - TFF 415MS X - Replacement Bearing
  • Tamiya® - TGR - Replacement Bearing
  • Tamiya® - TGX - Replacement Bearing
  • Tamiya® - TGX-MK1 1/8 Gas - Replacement Bearing
  • Tamiya® - TNX Nitro With Steering - Replacement Bearing
  • Tamiya® - TOA-3R Series - Replacement Bearing
  • Tamiya® - Toyota Blitz TA02 - Replacement Bearing
  • Tamiya® - Toyota Castrol Celica FF02 - Replacement Bearing
  • Tamiya® - TRF 414 - Replacement Bearing
  • Tamiya® - TRF 414-DJ Pro Module Suspension - Replacement Bearing
  • Tamiya® - TRF 415 - Replacement Bearing
  • Tamiya® - TRF 415MS - Replacement Bearing
  • Tamiya® - TRF 415MS Complete - Replacement Bearing
  • Tamiya® - Volkswagon Racer Complete - Replacement Bearing
  • Tamiya® - Volkswagon Racer-Touareg - Replacement Bearing
  • Tamiya® - Volvo 850 - Replacement Bearing
  • Team Magic® - G4S - Replacement Bearing
  • Tenth Technology® - Predator - Replacement Bearing
  • Traxxas® - E-Maxx - Replacement Bearing
  • Traxxas® - E-Maxx 4WD RTR - Replacement Bearing
  • Traxxas® - Jato - Replacement Bearing
  • Traxxas® - Nitro 4 TEC RTR - Replacement Bearing
  • Traxxas® - Nitro 4-TEC Pro - Replacement Bearing
  • Traxxas® - Revo - Replacement Bearing
  • Traxxas® - S-Maxx Stadium Max RTR - Replacement Bearing
  • Traxxas® - Sport Maxx - Replacement Bearing
  • Traxxas® - T- Maxx 3.3 - Replacement Bearing
  • Traxxas® - T-Maxx 2.5 With Additional Trans - Replacement Bearing
  • Traxxas® - T-Maxx 4WD RTR - Replacement Bearing
  • Traxxas® - T-Maxx 4WD RTR With Additional T - Replacement Bearing
  • Traxxas® - T-Maxx All - Replacement Bearing
  • Traxxas® - T-Maxx With Additional Trans. BR - Replacement Bearing
  • Trinity® - G4 Nitro Touring Car-E Class - Replacement Bearing
  • Trinity® - Mongoose - Replacement Bearing
  • Trinity® - Reflex NT 1/10 Scale - Replacement Bearing
  • Trinity® - Reflex NT Nitro With Clutch Bell - Replacement Bearing
  • Trinity® - Reflex NT Without Clutch Bell - Replacement Bearing
  • Xray® - FK5 Electric - Replacement Bearing
  • Xray® - T1 - Replacement Bearing
  • Xray® - T1 Evo 2 - Replacement Bearing
  • Xray® - T1 Factory Kit - Replacement Bearing
  • Xray® - T1 FK 05 Complete - Replacement Bearing
  • Xray® - T1 Racer - Replacement Bearing
  • Xray® - T1M Mini - Replacement Bearing
  • Xray® - T2 Basic - Replacement Bearing
  • Xray® - T2 Complete - Replacement Bearing
  • Xray® - T2 With Steering - Replacement Bearing
  • Xray® - X Ray - Replacement Bearing
  • Yokomo® - GT-4 RTR - Replacement Bearing
  • Yokomo® - GT-4 RTR-II - Replacement Bearing
  • Yokomo® - GT-4R - Replacement Bearing
  • Yokomo® - GT-4W - Replacement Bearing
  • Yokomo® - GT-4W2L - Replacement Bearing
  • Yokomo® - Hot Dog - Replacement Bearing
  • Yokomo® - MR-4BC Special - Replacement Bearing
  • Yokomo® - MR-4BX - Replacement Bearing
  • Yokomo® - MR-4MT - Replacement Bearing
  • Yokomo® - MR-4TC - Replacement Bearing
  • Yokomo® - MR-4TC BD - Replacement Bearing
  • Yokomo® - MR-4TC Custom - Replacement Bearing
  • Yokomo® - MR-4TC SD CGM - Replacement Bearing
  • Yokomo® - MR-4TC SD CM Drift Package - Replacement Bearing
  • Yokomo® - MR-4TC SD SSG /Black - Replacement Bearing
  • Yokomo® - MR-4TC SP - Replacement Bearing
  • Yokomo® - MR-4TC With Bell Crank Steering - Replacement Bearing
  • Yokomo® - MX4 - Replacement Bearing
  • Yokomo® - Works 93 - Replacement Bearing
  • Yokomo® - YR-4 - Replacement Bearing
  • Yokomo® - YR-4 II - Replacement Bearing
  • Yokomo® - YR-4GP - Replacement Bearing
  • Yokomo® - YR-4M - Replacement Bearing
  • Yokomo® - YRF-2 - Replacement Bearing
  • Yokomo® - YZ10 - Replacement Bearing
  • Yokomo® - YZ10W - Replacement Bearing

Cross References

  • Sealed Width A 6700 / 4
  • Sealed 6700A / 4
  • 6700A Basic Size Ref
View full details
6700A-2RB-ECODiagram6700A-2RB-ECOImage
