K-1000-1000-4000A-Z - Datasheet
ExaktKey
Category Information

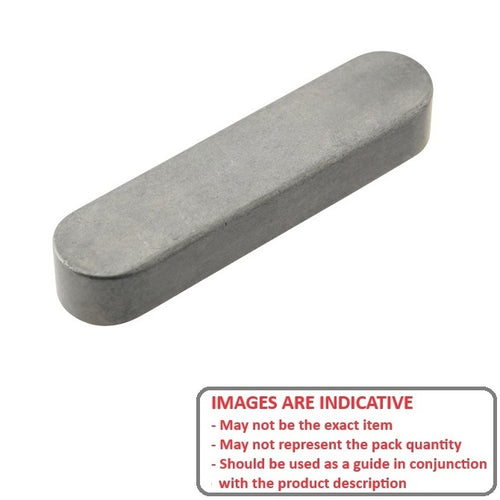

Keys - Machine - Carbon SteelCarbon Steel Machine Keys. Form A has rounded ends. Form B has square ends. Form AB has one end rounded and one end square. DIN6885
- An expanded range may be available on special order. Please enquire.
Product Data

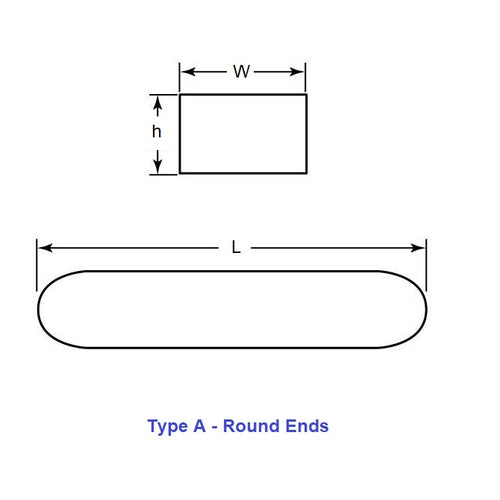

- Width (W)
:
10.00
mm
+ 0 / - 0.036
(Equiv. 0.394 in.) - Height (h)
10.00
mm
+ 0 / - 0.036
(Equiv. 0.394 in.) - Length (L)
40.00
mm
+ / - 0.25
(Equiv. 1.575 in.) - Finish Trivalent Zinc
- Tolerance Type Standard Undersized
- End Type A (Rounded Ends)
- Material Carbon Steel C45K Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- NoCor 32Z1010-040
- 32Z1010040
