G043B-108-M04-050-060-A-P - Datasheet
MBA
Category Information

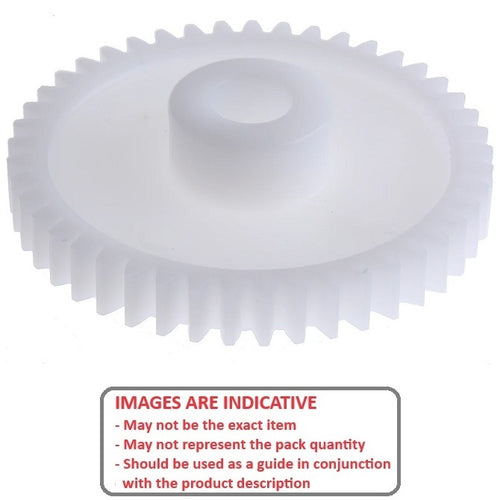

Gears - Spur - Hubbed - Module 0.4 - Plastic - StandardStandard Plastic Module 0.4 Hubbed Spur Gears. PCD in mm = No. of Teeth x 0.4. 20 Degree Pressure Angle.
- There are more items available in this range than currently listed. Please enquire if you have special requirements. Expanded range includes hardened gears, stainless steel, antibacklash, and special bore sizes.
- Be sure to match the pitch type and tooth angle when selecting spur gears.
- An expanded range may be available on special order. Please enquire.
- The diameter increases by 0.4mm per tooth
- Module 0.4. Approximately 1.26mm between the teeth.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Number of Teeth : 108

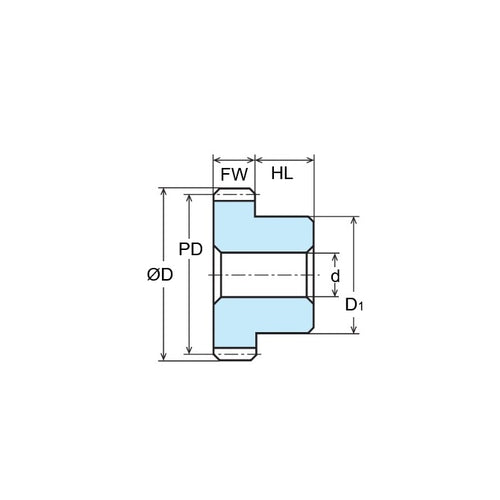

- Pitch Circle Diameter (PD)
43.20
mm
(Equiv. 1.701 in.) - Bore (d)
6.000
mm
(Equiv. 0.236 in.) - Outside Diameter (OD) 44.000 mm
- Face Width (FW) 5.000 mm
- Type Hubbed
- Hub Diameter (D1) 15.00 mm
- Hub Projection (HL) 7.00 mm
- Locking Method None
- Quality ISO 8 (AGMA 9)
- Material Acetal - No Insert
Product Compliance and Data
Additional Resources
Cross References
- A 1P 2MY04108
- A1P2MY04108
