FRB-108RS - Datasheet

MBA

Category Information

Bumpers - Rectangle

Rectangle Bumpers. This is the main category in this series

    Product Data

    • Length (A) : 101.600 mm
      (Equiv. 4 in.)
    • Width (B) 25.400 mm
      (Equiv. 1 in.)
    • Height (C) 19.050 mm
      (Equiv. 0.75 in.)
    • Length Centre Hole (D) 38.100 mm
    • Distance Between Holes (E) 25.400 mm
    • Width Centre Hole (F) 12.700 mm
    • Hole Size (G) 6.350 mm
    • No. of Holes 2
    • Durometer 80A
    • Material Neoprene Rubber
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      View full details

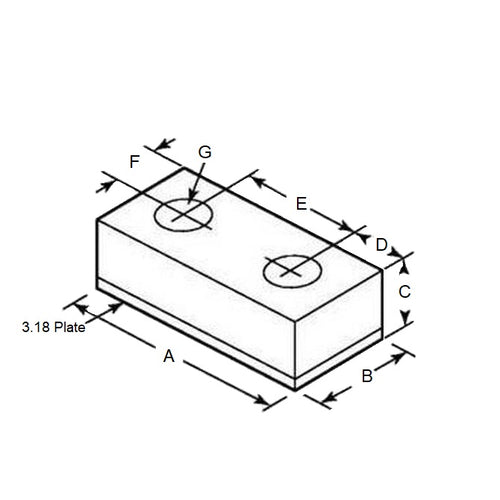

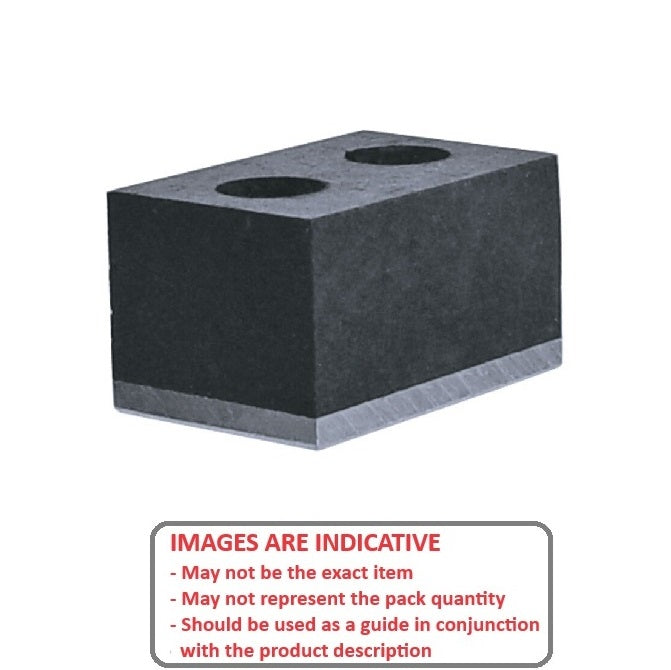

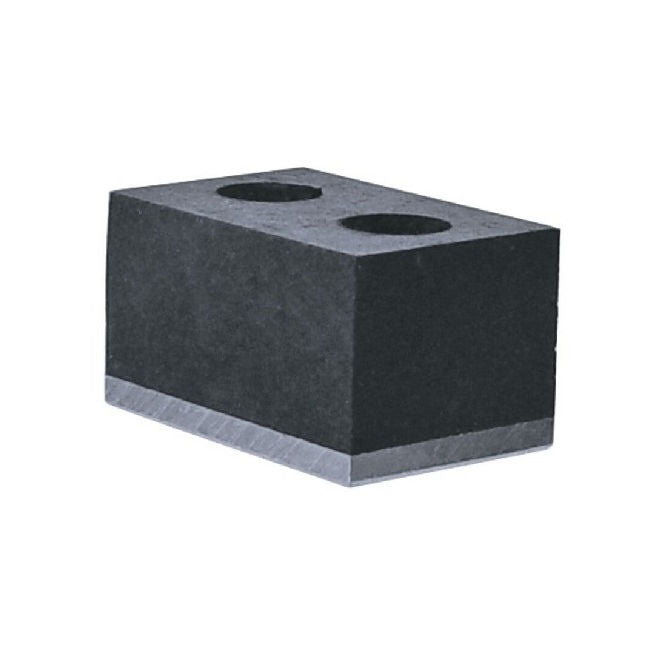

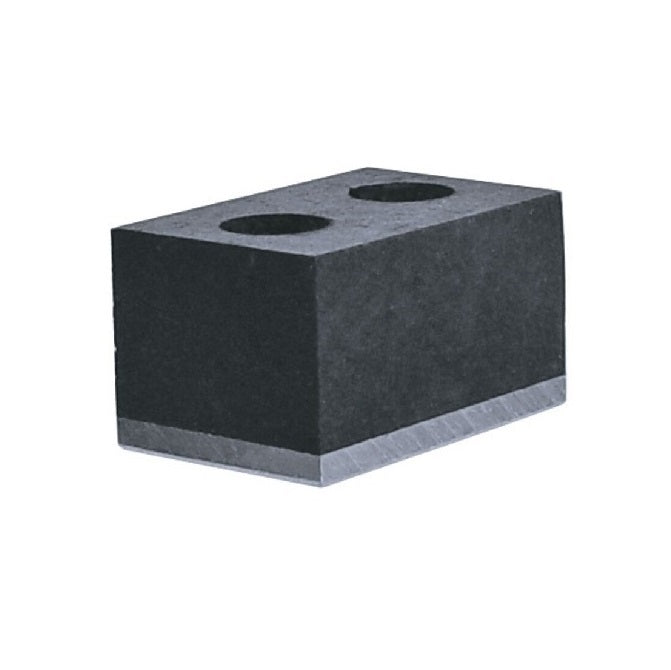

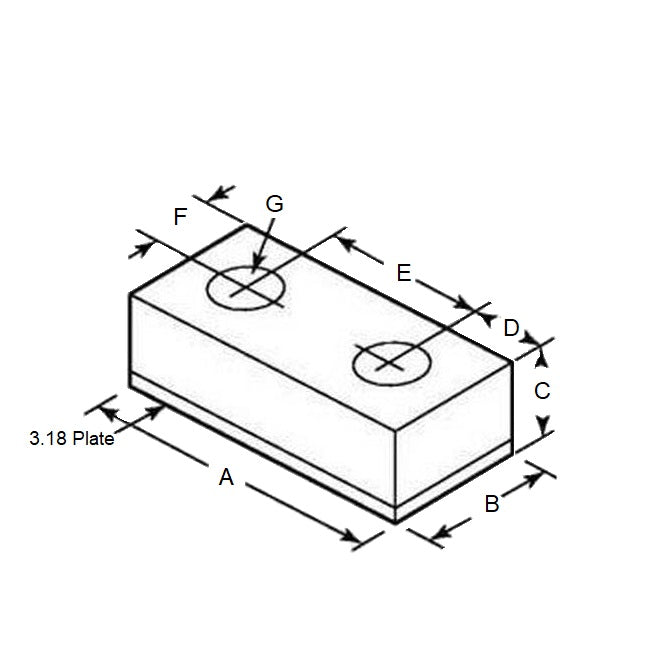

      FRB-108RSDiagramFRB-108RSImage
