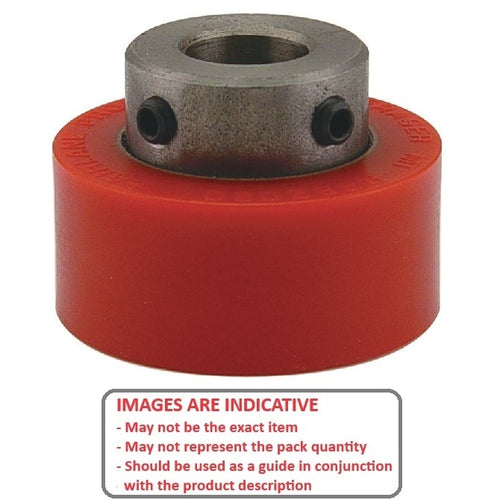

RR-382RS - Datasheet
MBA
Category Information
Rollers - Solid Shaft Mount - Coloured UrethaneColoured Urethane Solid Shaft Mount Rollers. Used on conveyors, belt idlers, shock cushioners, stamping die part guides, supports etc.
- Designed for use in machines and assembly operations where part movement and protection is needed.
- Blue colour may turn a shade of green when exposed to UV lighting
Product Data

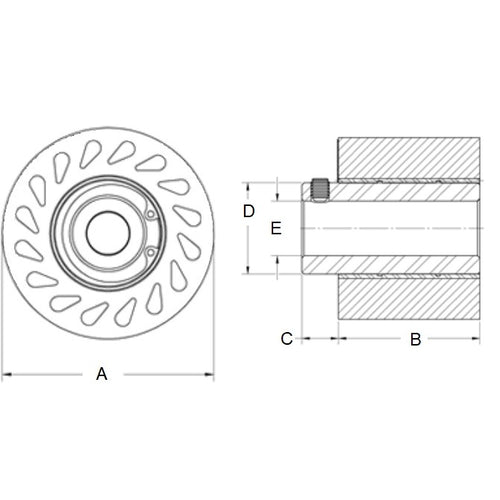

- Diameter (A) : 101.60 mm
- Length (B) 23.37 mm
- Bore (E) 15.90 - 16.03 mm
- Hub Projection (C) 12.700
- Durometer 80
- Colour Red
- Material Urethane
Product Compliance and Data
Additional Resources
