Miniature Bearings Australia
RR-472RS - Datasheet
MBA
Category Information

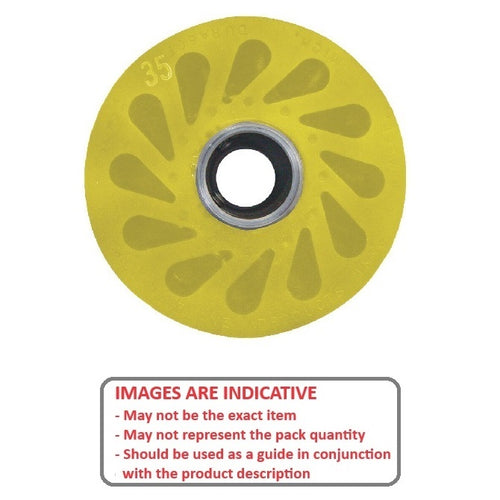

Rollers - Durasoft Shaft Mount - UrethaneUrethane Durasoft Shaft Mount Rollers. Used on conveyors, belt idlers, shock cushioners, stamping die part guides, supports etc.
- Designed for use in machines and assembly operations where part movement and protection is needed.
- Durasoft rollers have a gentle but firm touch.
- Unique shape of holes adds to their soft but resilient nature.
- Blue colour may turn a shade of green when exposed to UV lighting

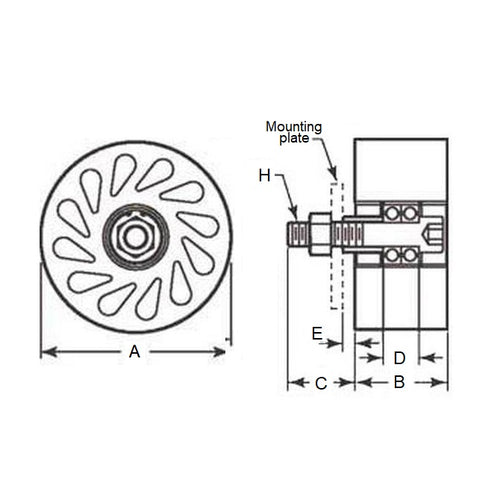

Product Data
- Diameter (A) : 101.60 mm
- Length (B) 23.37 mm
- Hub Projection (C) 12.700 mm
- Bore (E) 15.90 - 16.03 mm
- Durometer Shore A 35
- Colour Yellow
- Material Polyurethane
Product Compliance and Data
Additional Resources
Cross References
- KaVo® RR-472
- RR472
