CCI-10160-C - Datasheet

MBA

Category Information

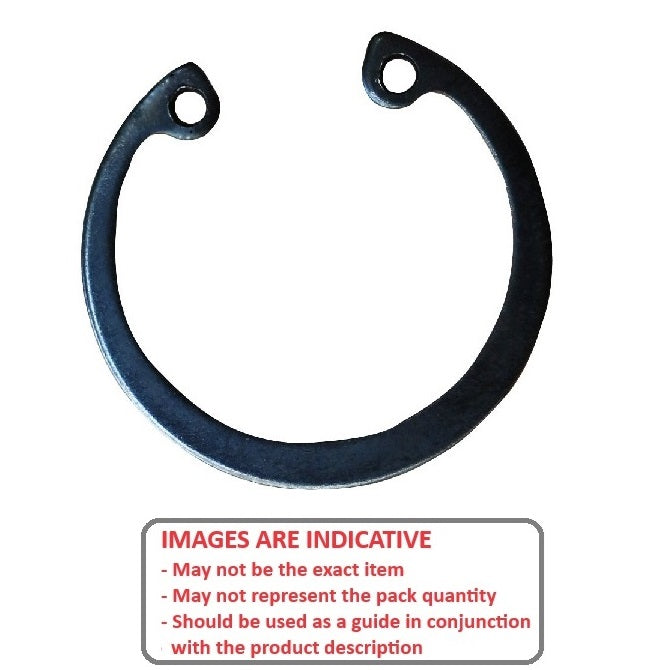

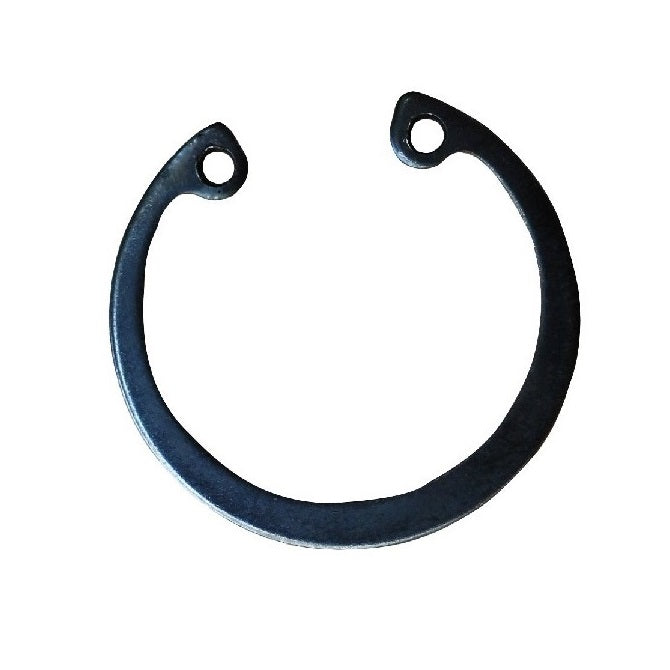

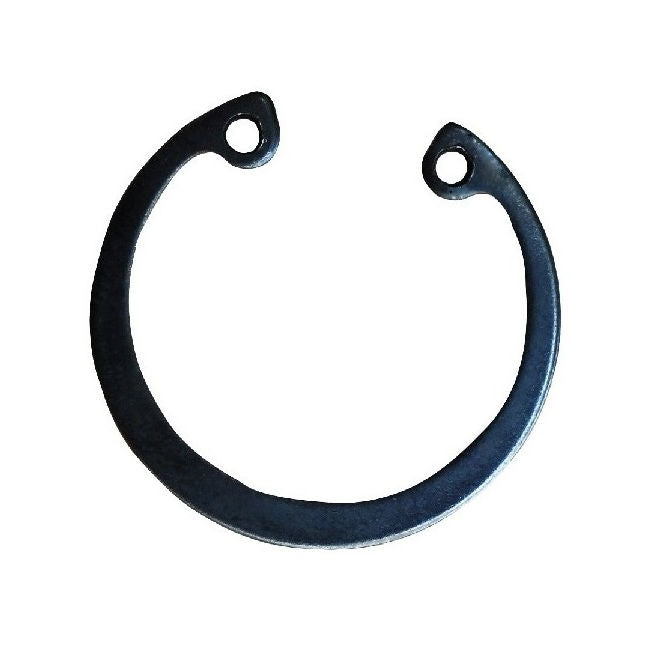

Retaining Rings - Internal - Circlips - Standard - Carbon Steel

Carbon Steel Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).

An expanded range may be available on special order. Please enquire.
Plain carbon steel
Tolerances on request.

Product Data

Housing Bore (B) : 101.60 mm
(Equiv. 4 in.)
Clip Thickness (T) 2.84 mm _{+/- 0.152}
(Equiv. 0.112 in.)
Groove Dia. (Dg) 107.54 mm _{+ 0.00 / - 0.10}
(Equiv. 4.234 in.)
Approx. Loose Circlip OD (Dr) 112.37 mm + 1.65 / - 1.65
Groove Width (W) 3.05 mm + 0.13 / - 0.00
Clearance in Bore (C) 82.30 mm
Clearance in Groove (C1) 88.14 mm
Min. Lug Diameter (h) 3.12 mm
Min. Extension (n) 9.14
Standard MIL-16625
Material Carbon Steel

Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

99142A680
NoCor HO-400
Seeger J4X.118IN
HO400
N13000400
N1300-0400
