G035B-100-D72-048-048-AL-G - Datasheet
MBA
Category Information

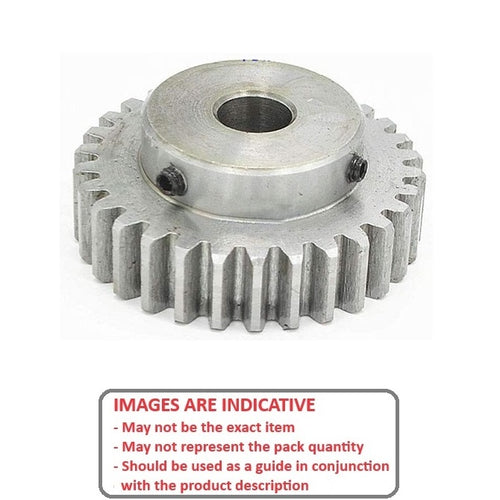

Gears - Spur - Hubbed - 72DP - AluminiumAluminium 72DP Hubbed Spur Gears. PCD in mm = No. of Teeth x 0.3528 (1/72 in.). 20 Degree Pressure Angle. DP stands for Diametrical Pitch and is an imperial measurement system.
- There are more items available in this range than currently listed. Please enquire if you have special requirements. Expanded range includes hardened gears, stainless steel, antibacklash, and special bore sizes.
- Be sure to match the pitch type and tooth angle when selecting spur gears.
- An expanded range may be available on special order. Please enquire.
- The diameter increases by 1 inch for every 72 teeth
- 72 Diametrical Pitch. Approx 1.11mm between the teeth.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

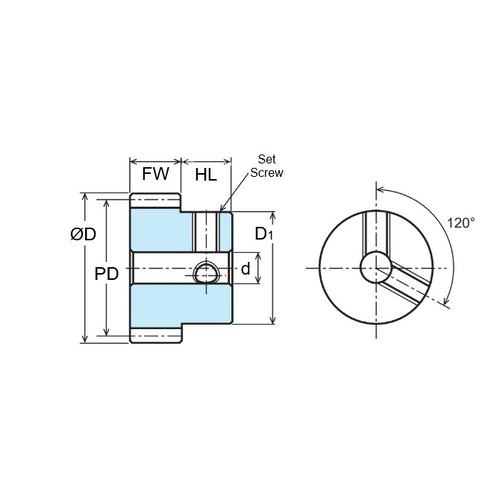

- Number of Teeth : 100
- Pitch Circle Diameter (PD)
35.28
mm
(Equiv. 1.389 in.) - Bore (d)
4.762
mm
(Equiv. 0.187 in.) - Outside Diameter (OD) 35.979 mm
- Face Width (FW) 4.75 mm
- Type Hubbed
- 9.53
- 5.55
- Locking Method Set Screw
- Quality AGMA Q10
- Material Aluminium Alloy 2024
Product Compliance and Data
Additional Resources
Cross References
- S1084Z072A100
- S1084Z-072A100
