CSN-1001-064 - Datasheet
MBA
Category Information

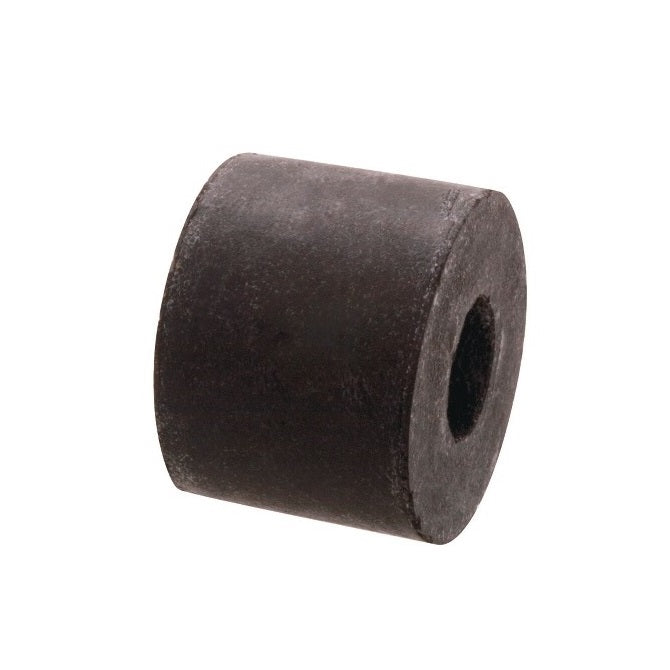

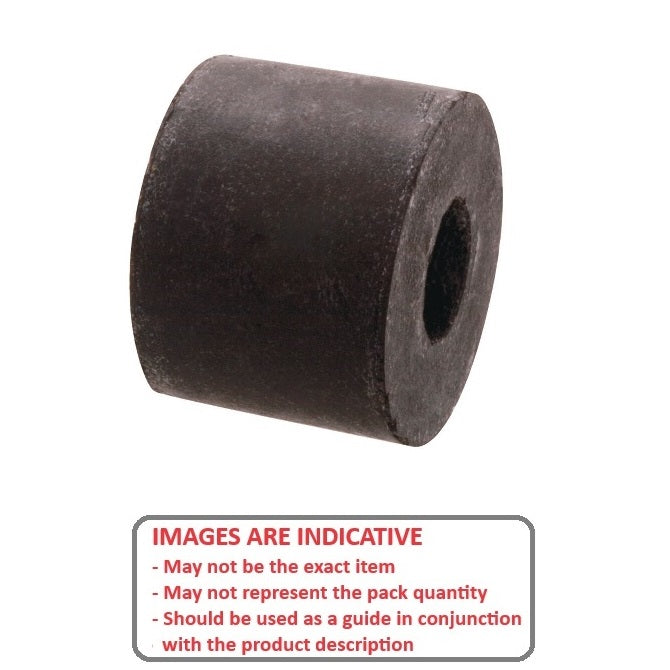

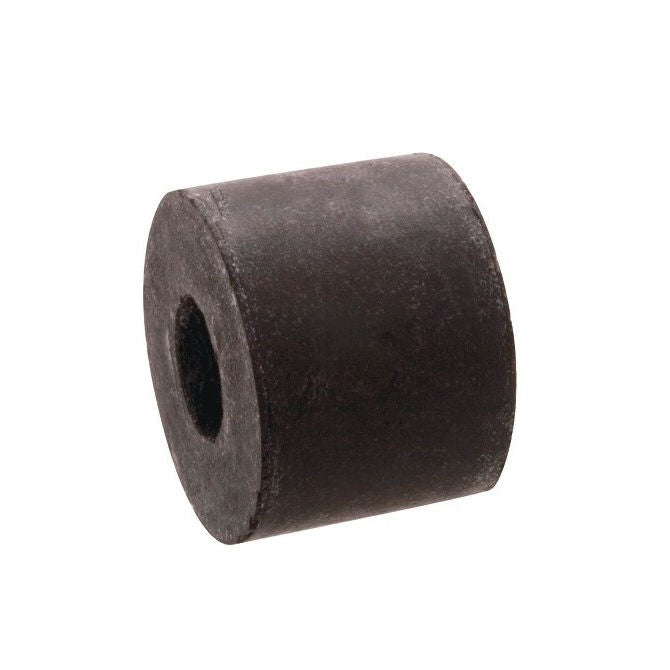

Mounts - Bumpers - Neoprene SpringsNeoprene Springs Bumpers Mounts. Neoprene elastomer springs have proven to be the safest, most efficient material for punching, stamping and drawing dies.
- An expanded range may be available on special order. Please enquire.
- Major advantages include high loads, increased durability, better performance, no maintenance and long life.
Product Data

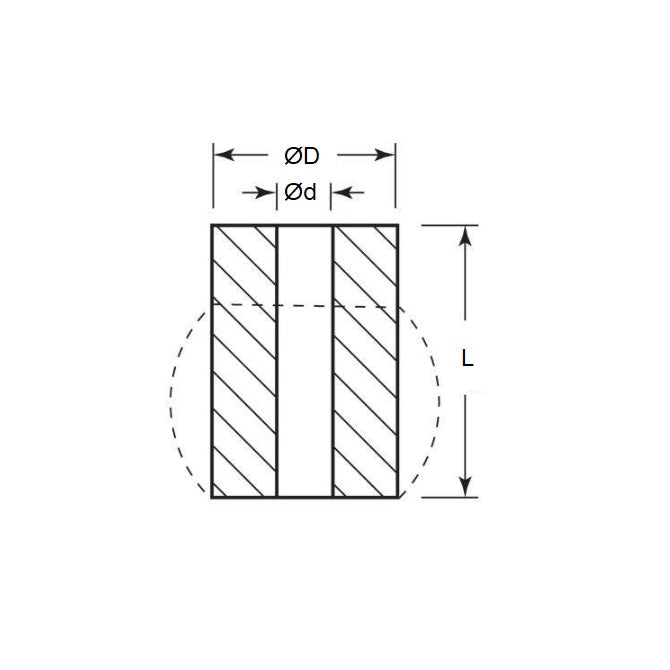

- Outside Diameter (A)
:
100.10
mm
(Equiv. 3.941 in.) - Inside Diameter (B)
21.1
mm
(Equiv. 0.831 in.) - Free Length (L)
63.5
mm
(Equiv. 2.5 in.) - Spring Rate 1126.9 N/mm Deflection +/- 20 Perc
- Max. Rec. Deflection 22.10 mm
- Approx. Load at Max Deflection 2101.7 Kg
- Material Neoprene Rubber
Product Compliance and Data
Additional Resources
Cross References
- BES3583
- BES-3583
