GAS3RS - Datasheet

MBA

Category Information

Gas Springs - Adjustable Force

Adjustable Force Gas Springs. Provides mechanical assistance for lifting and supporting various components. Adjustable Force.

    Product Data

    • Stroke (C) : 100.1 mm
      (Equiv. 3.941 in.)
    • Extended Length 263.91 mm
      (Equiv. 10.39 in.)
    • Supplied Force 66.22 KG
    • Shaft Diameter (A) 7.87 mm
    • Body Diameter (B) 18.03 mm
    • Thread M6 x 1.0
    • More Information For more information please contact us.
    • Material Steel
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • GAS3
      • GAS-3
      View full details

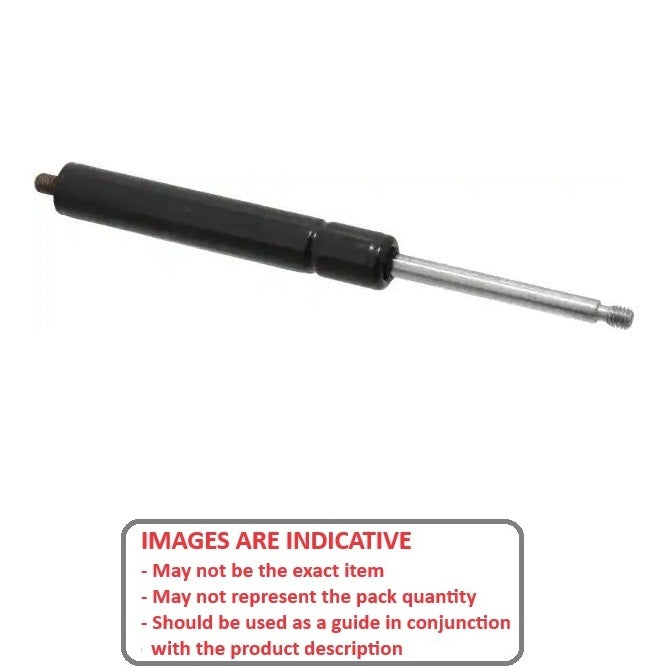

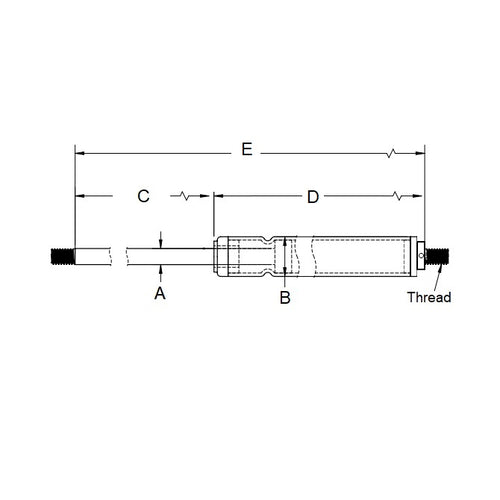

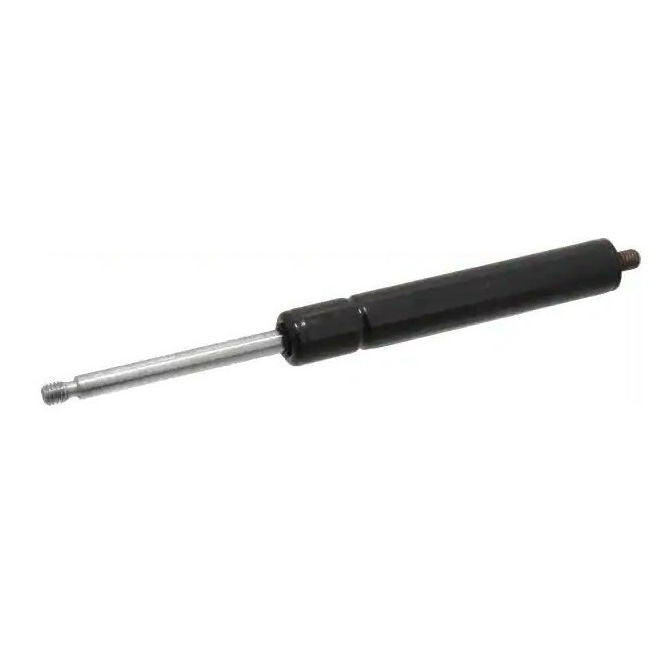

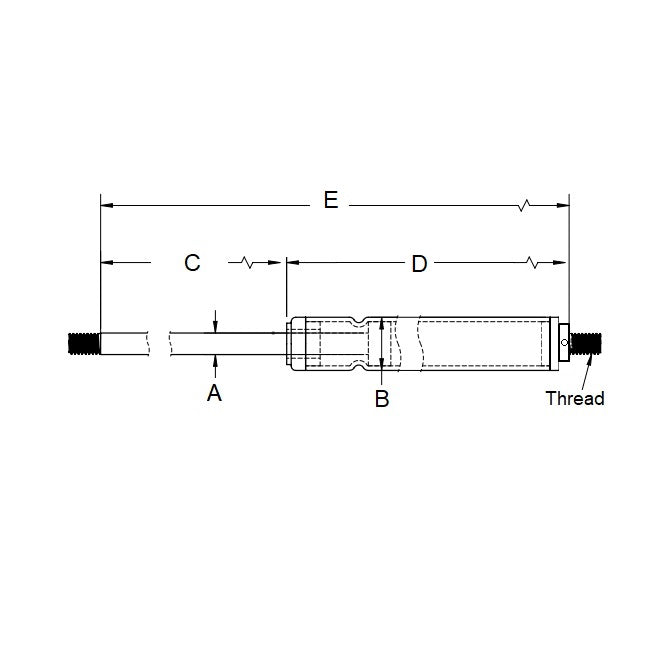

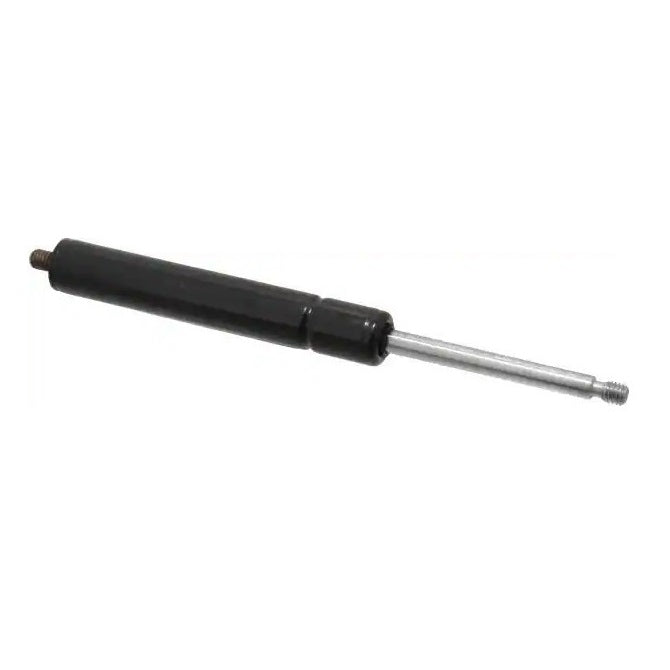

      GAS3RSDiagramGAS3RSImage
