PBC-765RS - Datasheet

MBA

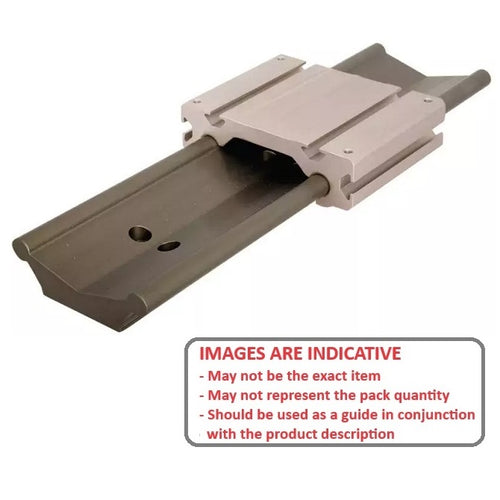

Guide System Two Piece Linear. Using Frelon Gold plain bearing technology. Rail and carriage are made from 6063-T6 aluminium and come as a set.

Rails are ceramic coated to resist corrosion and repel weld spatter and contaminants.
Smooth running. Dampens vibration. Guide has slots for T nuts or bolts. Two component system allows for easier installation than traditional rail systems.

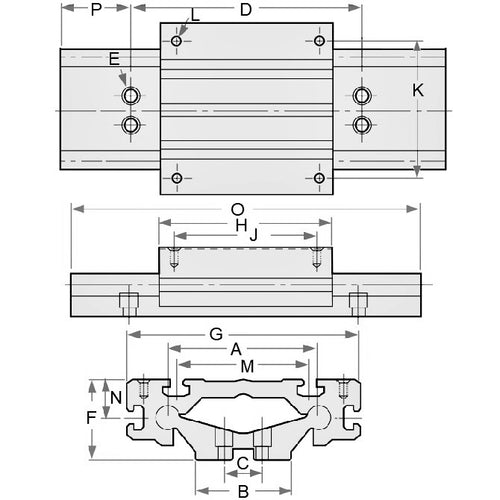

Rail Top Width (A/B) : 100.076 / 66.040 mm
(Equiv. 3.94 in.)
C 25.400 mm
(Equiv. 1 in.)
Rail Bolt Centres (D) 152.400 mm
(Equiv. 6 in.)
Rail Height (F) 53.975 mm
Carriage Width (G) 154.940 mm
Carriage Length (H) 114.300 mm
Carriage Bolt Centre Length (J 95.250 mm
Carriage Bolt Centre Width (K) 133.350 mm
Overall Length (O) 609.60 mm
P 76.20 mm
Bolt Size (L) 1/4-20 UNC (6.350mm)
M 88.900 mm
Material Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating

Country of Origin: US
