CCE-10001-C - Datasheet
MBA
Category Information

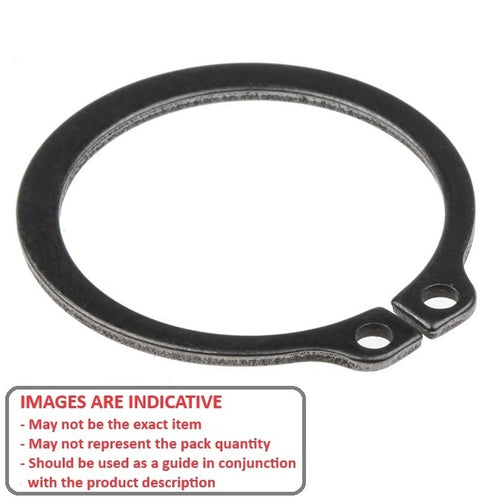

Retaining Rings - External - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
Product Data
- Shaft Diameter (Ds)
:
100.01
mm
(Equiv. 3.937 in.) - Clip Thickness (T)
2.77
mm
+/- 0.152
(Equiv. 0.109 in.) - Groove Dia. (Dg)
94.78
mm
+/- 0.076
(Equiv. 3.731 in.) - Approx. Loose Circlip ID (A) 92.51 mm
- Groove Width (W) 3.05 mm
- Clearance on Shaft (C1) 116.84 mm
- Clearance in Groove (C1) 111.51 mm
- Min. Lug Diameter (h) 3.12 mm
- Min. Extension (n) 8.00
- Standard MIL-16624
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 97633A646
- NoCor SH-393
- N14000393
- N1400-0393
- N14000393APP
- N1400-0393APP
- SH393
