MLM-200M-100-TP - Datasheet
MBA
Category Information

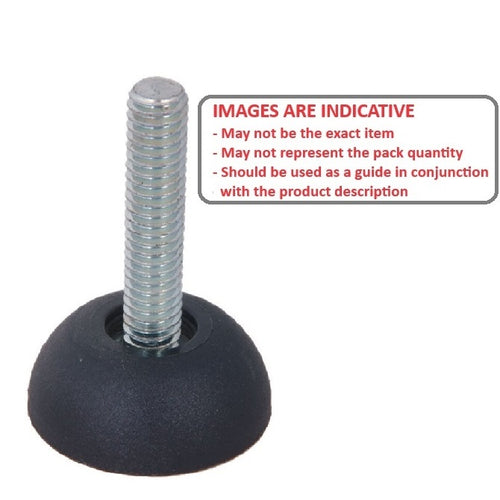

Mounts - Levelling Studded - Standard - ThermoplasticThermoplastic Standard Levelling Studded Mounts. Levelling adjusters. Economical choice for a wide range of applications.
- An expanded range may be available on special order. Please enquire.
- Base is made from reinforced thermoplastic.
- Threaded stem is steel.
- Optional non skid rubber pads available separately

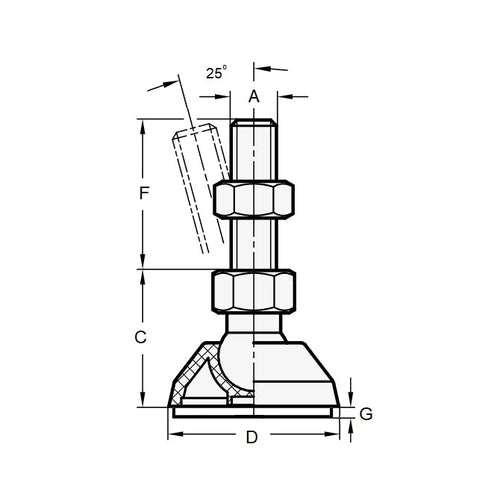

Product Data
- Thread Size (A) : M20 (20x2.5mm)
- Base Diameter (D)
80.0
mm
(Equiv. 3.15 in.) - Foot Height (C)
27.0
mm
(Equiv. 1.063 in.) - Thread Length (F) 100.0 mm
- Base Height (E) 27.0 mm
- Overall Height 127.0 mm
- Load Rating 100 Kg
- Finish Zinc Plated
- Pad Thickness (G) 2.00 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- RST-530
- RST530
- MLM01002780100M20P
- MLM10002780100M20P
