AD-1410 - Datasheet

C-JAC

Category Information

Shock Absorbers - Hydraulic - Adjustable - C-Jac

C-Jac Adjustable Hydraulic Shock Absorbers. This is the main category in this series

    Product Data

    • Stroke : 10.0 mm
      (Equiv. 0.394 in.)
    • Thread (C) M14x1.5 (14.0mm)
    • Length (A) 109.0 mm
      (Equiv. 4.291 in.)
    • Shaft Size (D) 4.0 mm
    • Max. Effective Mass 80 Kg
    • Max. Nm Per Cycle 20 Nm
    • Max. Nm Per Hour 25000 Nm
    • Max Impact Speed 3.0 m/s
    • Weight 90 g
    • Body Length (B) 88.5 mm
    • Tip Diameter (C) 12.0 mm
    • Tip Length (E) 10.5 mm
    Country of Origin: AU

    Product Compliance and Data

    Additional Resources

      View full details

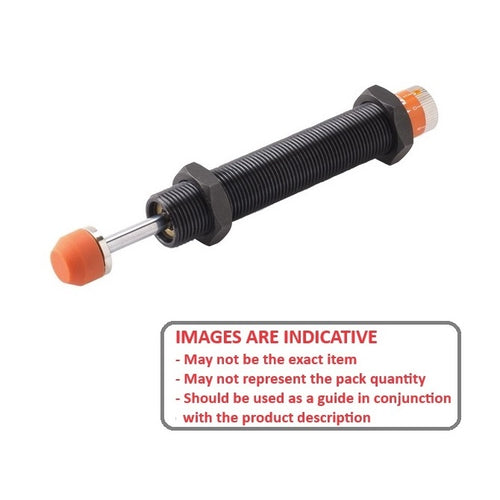

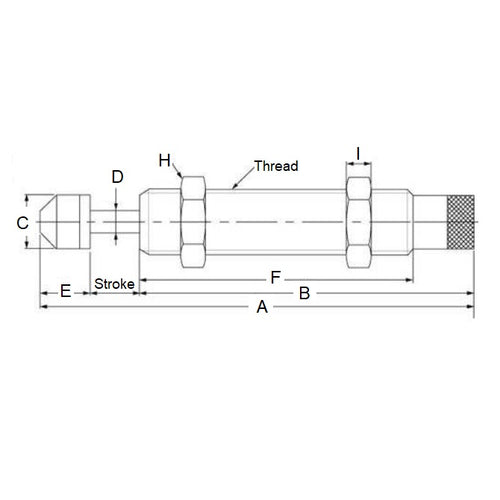

      AD-1410DiagramAD-1410Image
