BB-100-L280 - Datasheet

MBA

Category Information

Housing and Bearing Assembly - Pillow Block - Thermoplastic - W300

W300 Thermoplastic Pillow Block Housing Assembly. Iglide L280 / Igus W300 Ball with Thermoplatic Body.

  • Maintenance Free, Lightweight, Self-Lubricating.
  • Compensates for alignment errors.
  • Temperature Range -40 oC to +130 oC.
  • Max. Static Tensile Strength is Long Term. Info for Short Term also available.

Product Data

  • Bore Diameter (d) : 10.000 mm
    (Equiv. 0.394 in.)
  • Overall Length (L) 62.000 mm
    (Equiv. 2.441 in.)
  • Height (H) 28.000 mm
    (Equiv. 1.102 in.)
  • Width (W) 10.500 mm
  • Overall Width (W2) 14.000 mm
  • Distance Base to Centre 14.000 mm
  • Max. Angle of Pivot 25 °
  • Max. Static Tensile Strength 747 N
  • Material (Body) Thermoplastic
  • Material (Ball) L280 Polymer
Country of Origin: DE

Product Compliance and Data

Additional Resources

    Cross References

    • 6687K34
    • Igus KSTM-10
    • I-594
    • I594
    • KSTM10
    View full details

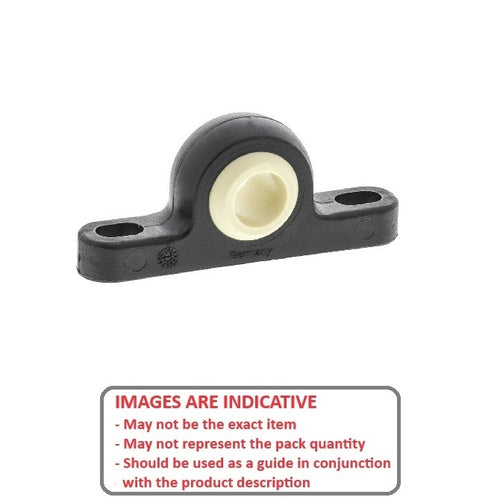

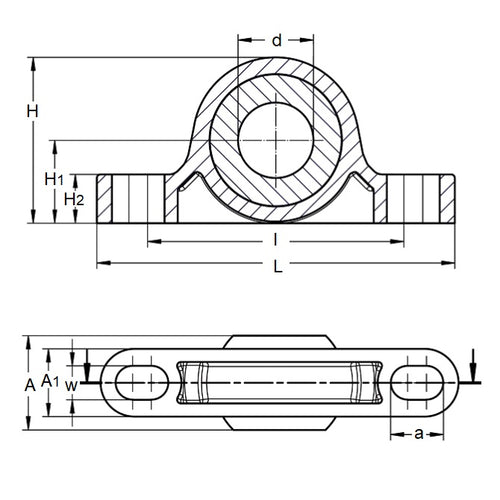

    BB-100-L280DiagramBB-100-L280Image
