Miniature Bearings Australia
KFL000 - Datasheet
MBA
Category Information

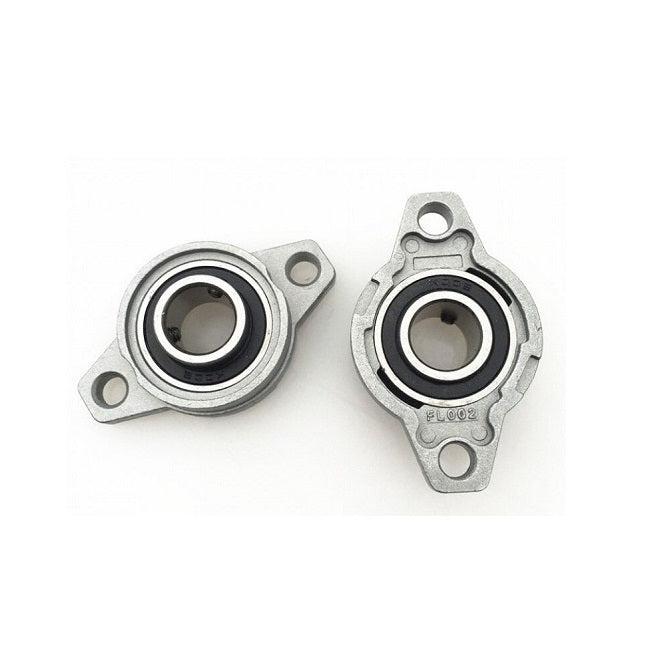

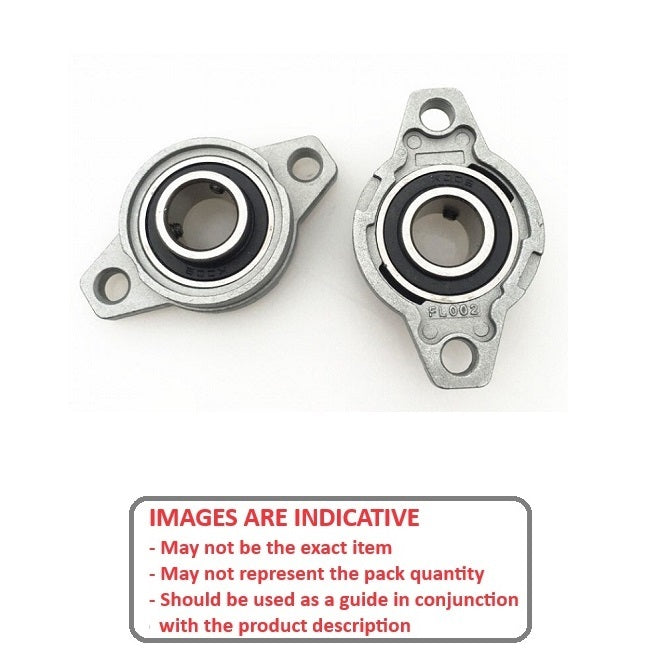

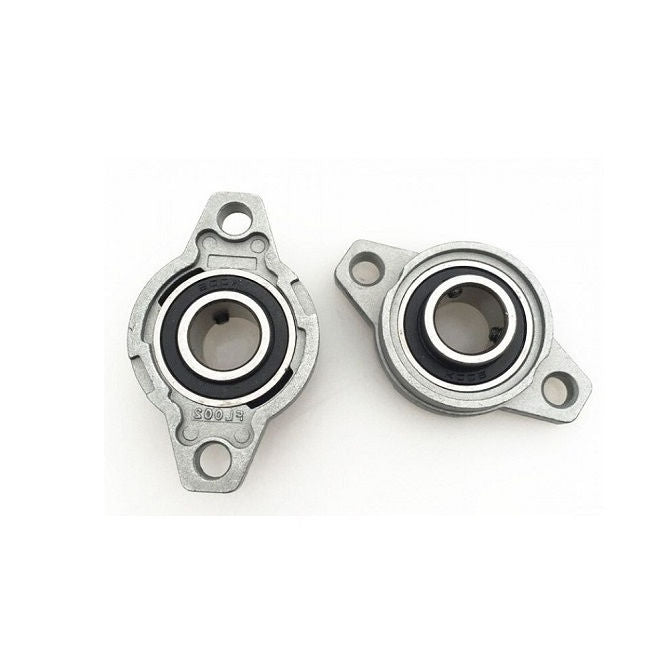

Housing and Bearing Assembly - Flanged 2 Bolt - Rigid - AluminiumAluminium Non Aligning Flanged 2 Bolt Housing Assembly. Starting at 8mm bore size, aluminium silver series housings with removable chrome steel bearing
Product Data

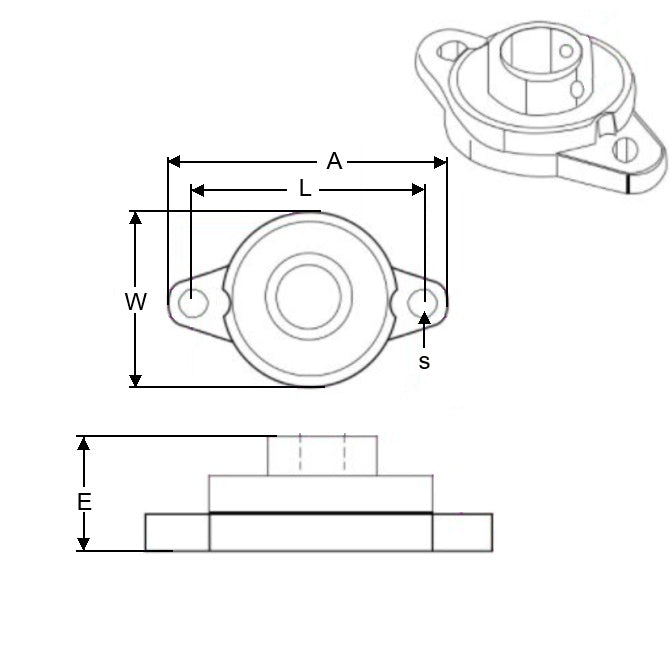

- Nominal Shaft Size
:
10.0
mm
(Equiv. 0.394 in.) - Width (W)
36.0
mm
+/- 1.0
(Equiv. 1.417 in.) - Overall Length (A)
60.0
mm
(Equiv. 2.362 in.) - Overall Height (E) 15.5 mm
- Bolt Hole Size (s) 7.0 mm
- Bolt Hole Centres (L) 45.0 mm +/- 0.5
- Material Aluminium
