REF-100-R-CB - Datasheet
MBA
Category Information

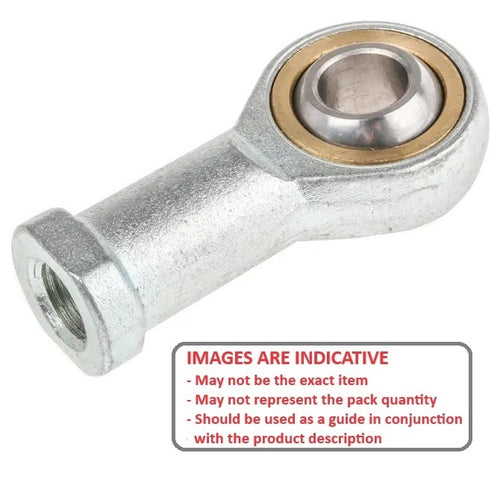

Rod Ends - Female - Steel - Plain - Bronze LinedBronze Lined Plain Steel Female Rod Ends. Imperial and Metric / Carbon Steel. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.

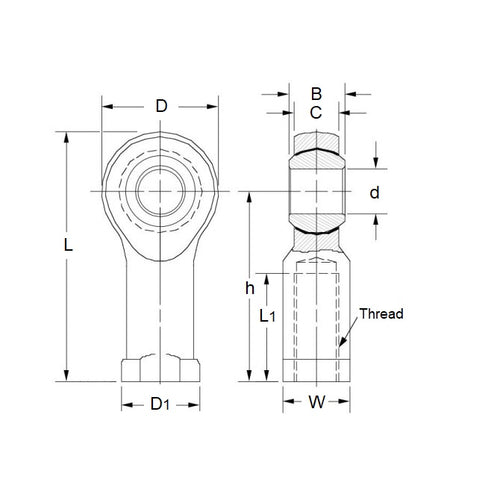

Product Data
- Eye Size (d1)
:
10
mm
(Equiv. 0.394 in.) - Overall Length (L)
56.00
mm
(Equiv. 2.205 in.) - Thread Size (T) M10x1.5 Right
- Thread Length (l2) 21.00 mm
- Head Width (W) 10.50 mm
- Eye Width (W1) 14.00 mm
- Head Diameter (D) 26.00 mm
- Centre Height (l1) 43.00 mm
- Grease Nipple Yes
- Body Width/Flange Width(W2/D3) 17.00 / 19.00 mm
- Material Bronze Lined Steel
Product Compliance and Data
Additional Resources
Cross References
- MTR BNF10
- Misumi E-GYN10
- IKO PHS10
- EGYN10
