DPS100-035-440-1-E - Datasheet
NoCor
Category Information

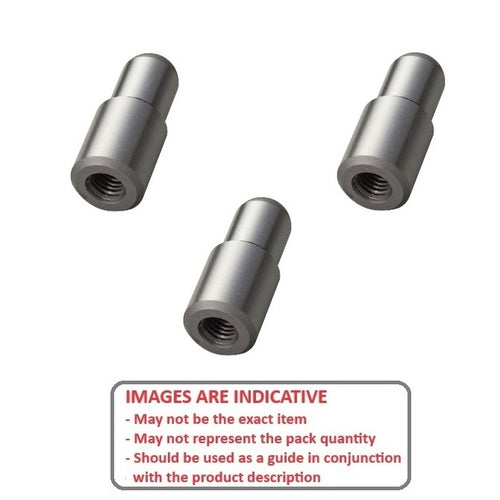

Pins - Dowel - Stepped - Chamfered Ends - Extractable - 440 Stainless Steel440 Stainless Steel Extractable Chamfered Ends Stepped Dowel Pins. Precision Extractable Dowel Pins with a Step
- Also known as parallel pins
- Dowel pins are not used as bearing shafts under normal circumstances, due to their oversized tolerances
- An expanded range may be available on special order. Please enquire.

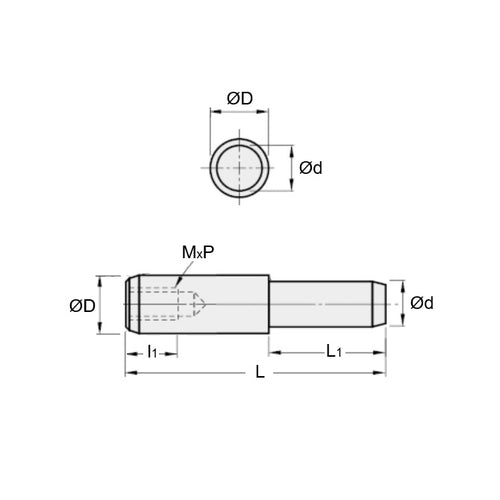

Product Data
- Diameter (D)
:
10.000
mm
+ 0.005 / + 0.010
(Equiv. 0.394 in.) - Length (L)
35.00
mm
+ 0.005 / + 0.010
(Equiv. 1.378 in.) - Approx. Overall Length
35.00
mm
(Equiv. 1.378 in.) - Type 2 (Chamfer Both Ends)
- Step Diameter (d) 8.000 mm
- Thread Size M5x0.8
- Step Length (L1) 15.00 mm
- ISO 2338
- Material Stainless Steel AISI 440C
Product Compliance and Data
Additional Resources
Cross References
- Misumi MSFWCM10-35
- MSFWCM1035
