KF048F-025-TPST - Datasheet

MBA

Category Information

Knobs - Ball - Female Threaded - Polished Steel

Polished Steel Female Threaded Ball Knobs. Low carbon steel 12L14

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread or Hole Size : 10-32 UNF (4.76mm)
  • Diameter 25.40 mm
    (Equiv. 1 in.)
  • Thread Minimum Depth 9.5 mm
    (Equiv. 0.374 in.)
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 6045K34
  • SB23
  • SB-23
View full details

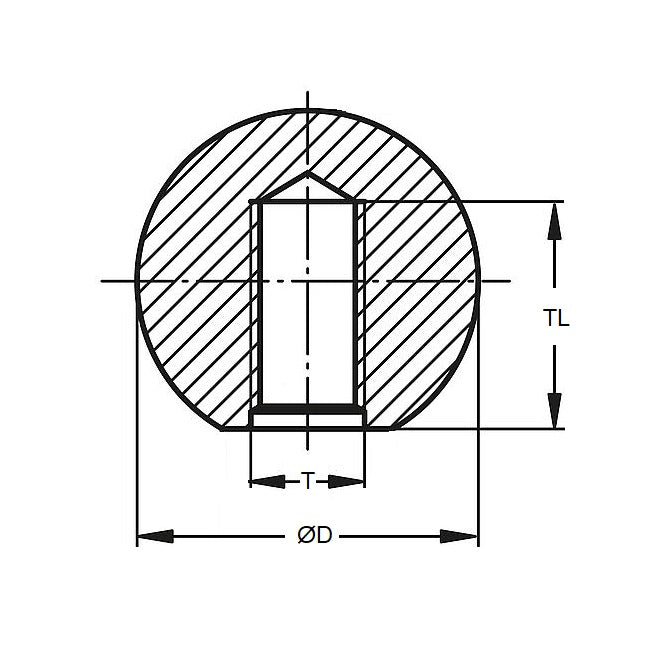

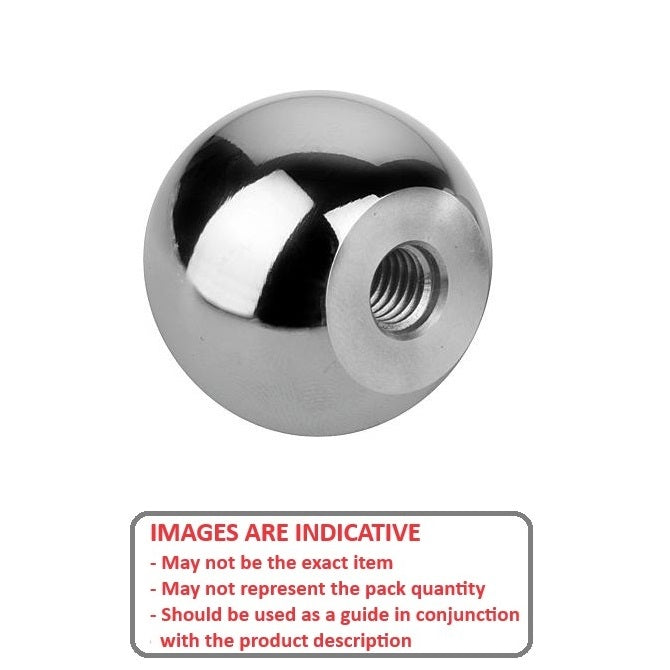

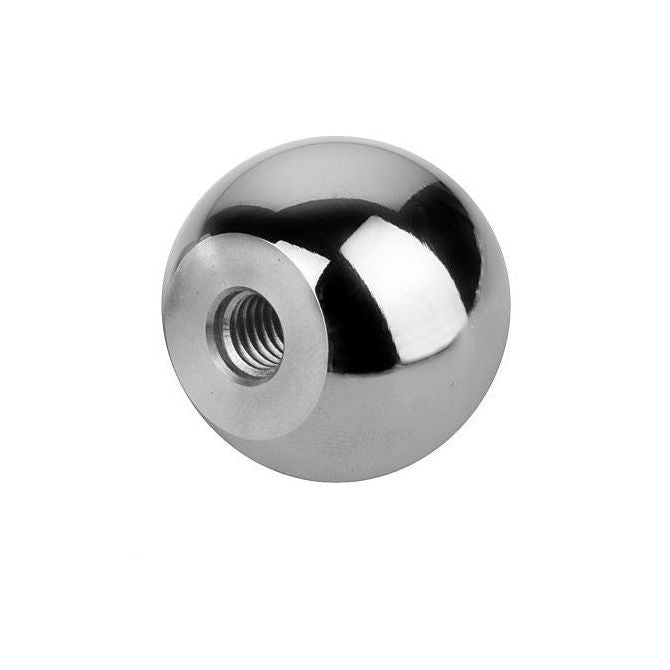

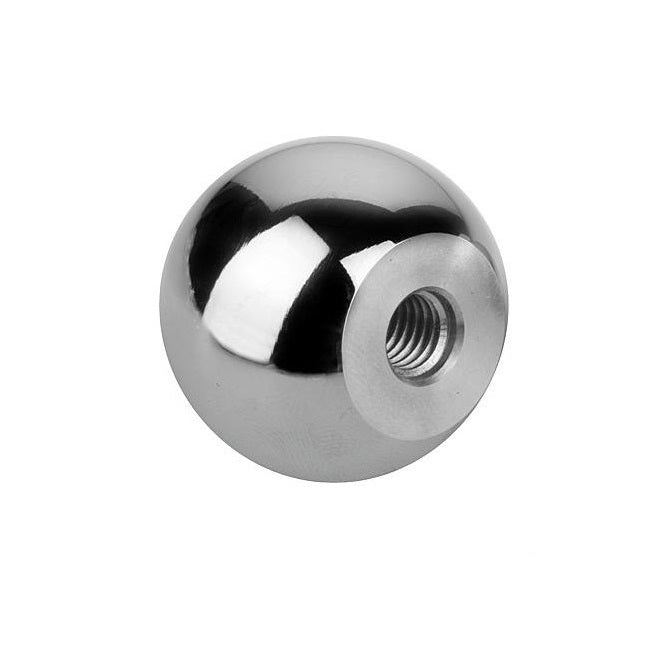

KF048F-025-TPSTDiagramKF048F-025-TPSTImage
