KF048F-025-5L-BR - Datasheet
MBA
Category Information

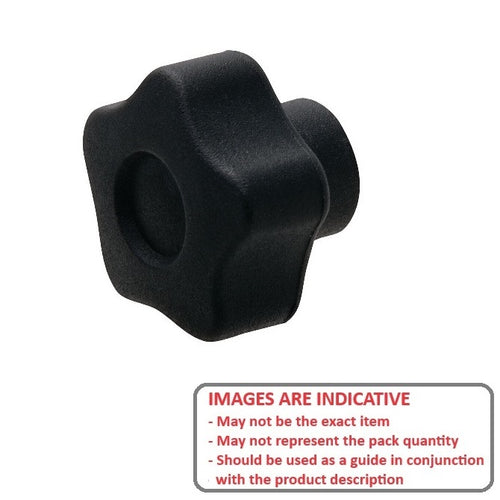

Knobs - Lobe - Five Lobe - Female - StandardStandard Female Five Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 10-32 UNF (4.76mm)

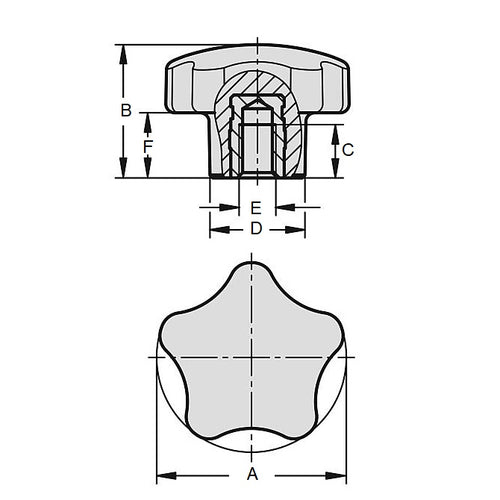

- Head Diameter (A)
24.89
mm
(Equiv. 0.98 in.) - Thread Length
9.9
mm
(Equiv. 0.39 in.) - Colour Black
- Hub Diameter (C) 12.95 mm
- Knob Height (B) 19.05 mm
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- KHY100
- KHY-100
