KF048F-025-7L-SP - Datasheet
MBA
Category Information

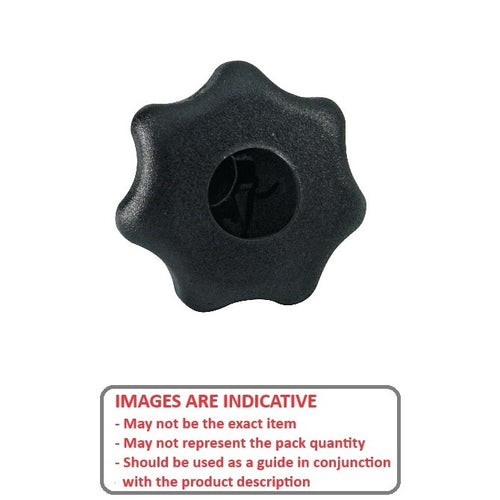

Knobs - Lobe - Seven Lobe - Female - StandardStandard Female Seven Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 10-32 UNF (4.76mm)

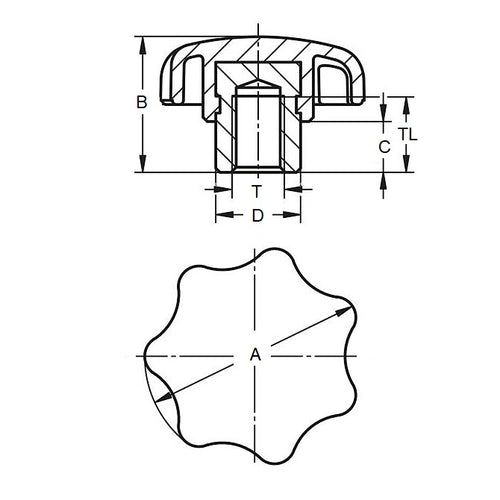

- Head Diameter (A)
24.89
mm
(Equiv. 0.98 in.) - Thread Length
8.4
mm
(Equiv. 0.331 in.) - Colour Black
- Hub Diameter (C) 9.91 mm
- Hub Length (D) 6.10 mm
- Knob Height (B) 16.00 mm
- Material Plated Steel Hub
Product Compliance and Data
Additional Resources
Cross References
- KBP-295
- KBP295
