THS048F-010-K-3 - Datasheet
MBA
Category Information

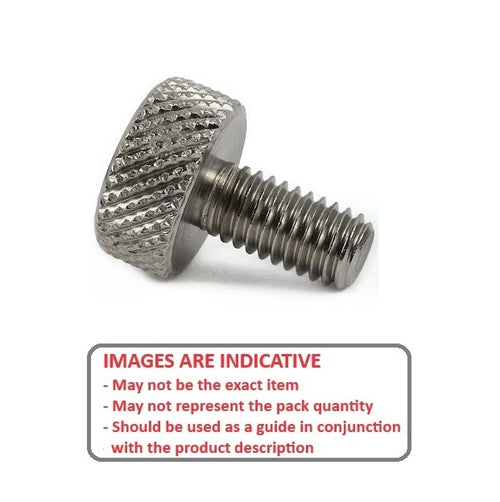

Screws - Thumb - Knurled - Stainless - StandardStandard Stainless Knurled Thumb Screws. Stainless steel knurled head thumb screws
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (C) : 10-32 UNF (4.76mm)
- Thread Length (Tl)
9.53
mm
(Equiv. 0.375 in.) - Overall Length (L)
14.29
mm
(Equiv. 0.563 in.) - Head Diameter (D) 11.11 mm
- Head Height (H) 4.76 mm
- Finish Plain
- Material Stainless Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 91746A358
- AJ580
- AJ-580
