Category Information

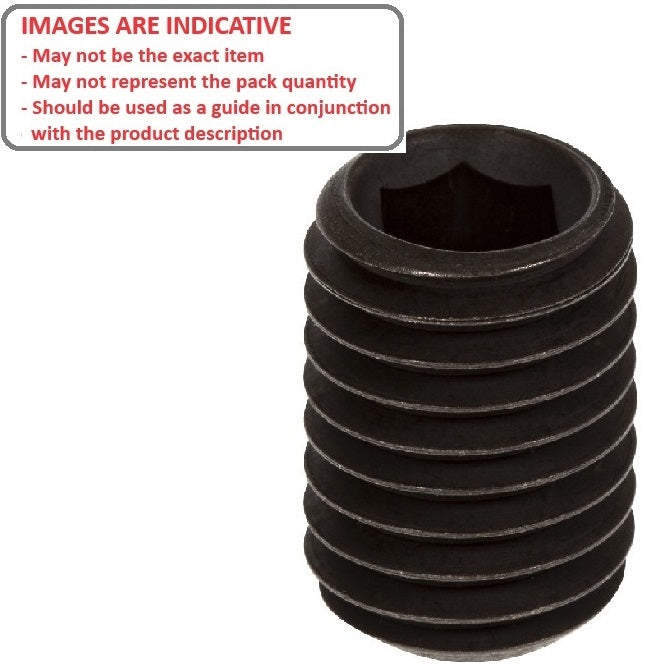

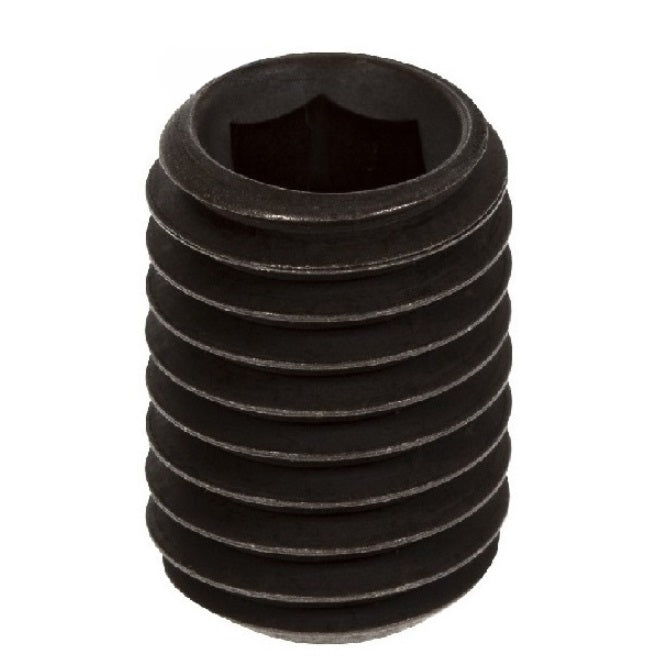

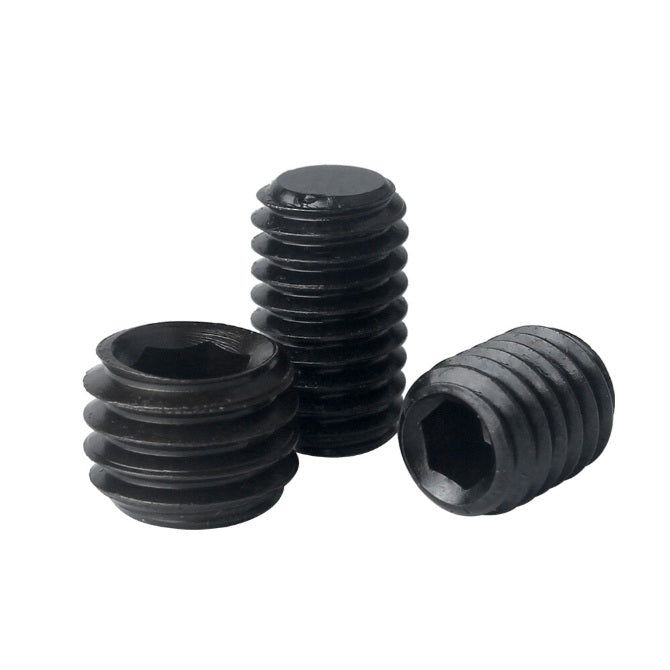

Socket Set Screws - Flat Tip DIN913 - Alloy SteelAlloy Steel Flat Tip DIN913 Socket Set Screws. Flat tip grub screws
- Socket driven grub screws with a solid flat tip.
Product Data
- Thread Size : 10-32 UNF (4.76mm)

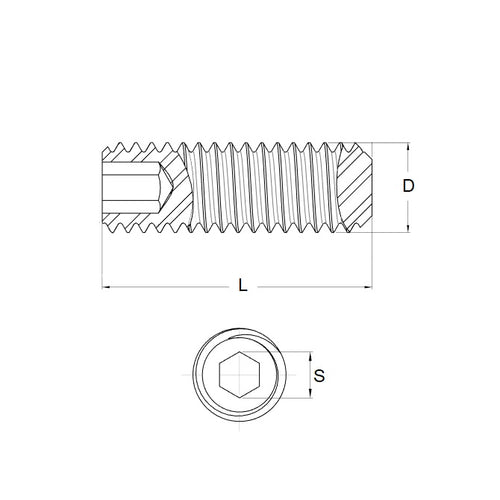

- Thread Length (L)
6.4
mm
(Equiv. 0.252 in.) - Type Flat Tip
- Hex Key Size 2.38 (3/32)
- Pitch 0.794 mm
- Threads Per Inch 32 TPI
- Finish Hardened, Black Oxide Coated
- Material Carbon Steel - Hardened
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 94105A825
- BRB151203P
- BRB-151203P
