SS048F-0064-AS-CP - Datasheet
MBA
Category Information

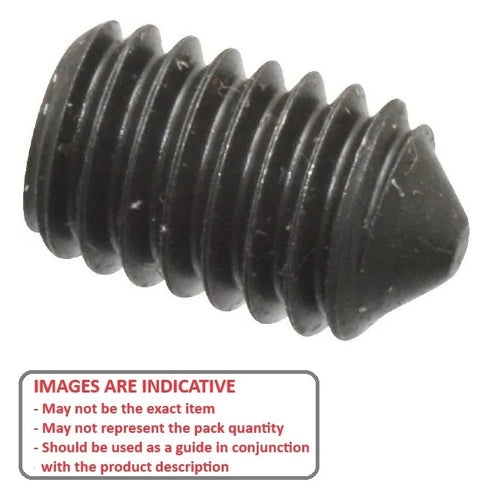

Socket Set Screws - Cone PointCone Point Socket Set Screws. Cone point grub screws
- Socket driven grub screws with a cone point.
- Sharp, pointed cone-shaped end designed to penetrate and wedge into the material it secures, providing exceptional axial and torsional holding power for permanent or long-term applications like holding parts on a shaft.
Product Data
- Thread Size : 10-32 UNF (4.76mm)

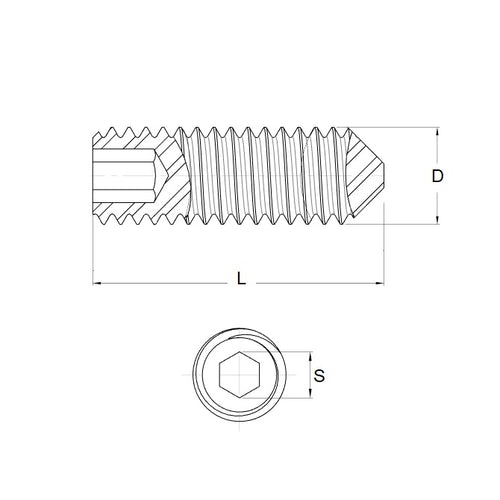

- Thread Length (L)
6.4
mm
(Equiv. 0.252 in.) - Type Cone Point
- Hex Key Size 2.38 (3/32)
- Pitch 0.794 mm
- Threads Per Inch 32 TPI
- Point Angle 90 ° +/- 2
- Material Carbon Steel
Product Compliance and Data
