SK048F-038-PH-CZ - Datasheet
MBA
Category Information

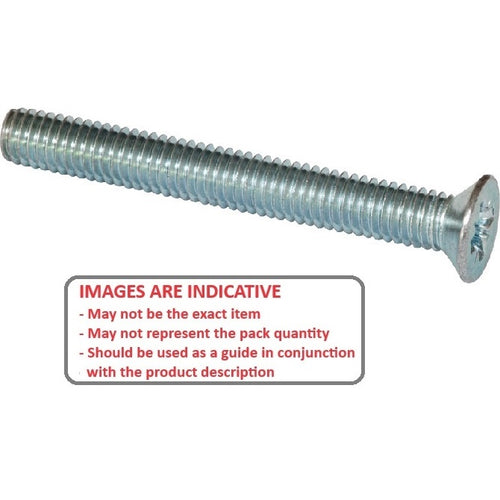

Screws - Countersunk - Phillips - SteelSteel Phillips Countersunk Screws. Flat Head Countersunk UNC - UNF - METRIC
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data
- Thread Size (C) : 10-32 UNF (4.76mm)
- Overall Length (L)
38.1
mm
(Equiv. 1.5 in.) - Material Zinc Plated Steel
- Max Head Diameter (A) 9.20 mm
- Max Head Height 3.2 mm
- Type Countersunk / Philips
- Pitch 0.794 mm
- Threads Per Inch 32 TPI
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 90273A836
- Hitech MSCPZP1032112
