THS048F-022-H-CB - Datasheet
MBA
Category Information

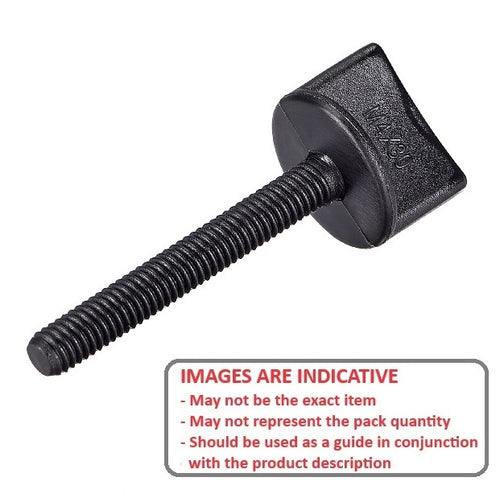

Screws - Thumb - Half TurnHalf Turn Thumb Screws. This is the main category in this series
- An expanded range may be available on special order. Please enquire.
Product Data

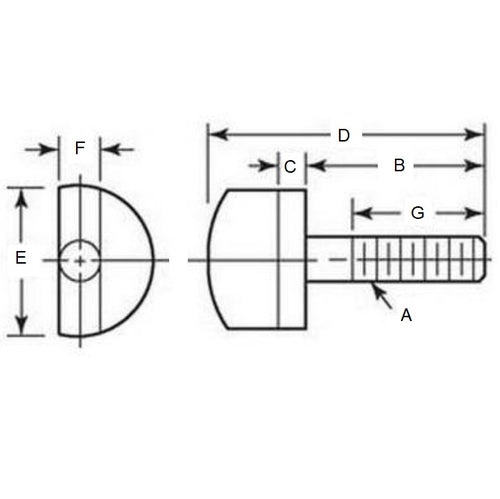

- Thread Size (A) : 10-32 UNF (4.76mm)
- Thread Length (G)
22.23
mm
(Equiv. 0.875 in.) - Overall Length (D)
42.86
mm
(Equiv. 1.687 in.) - Head Diameter (E/F) 19.05 / 4.76 mm
- Finish Black Oxide
- Material Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- HTS-700
- HTS700
