PLST-048F-102-HKSLK-013 - Datasheet

MBA

Category Information

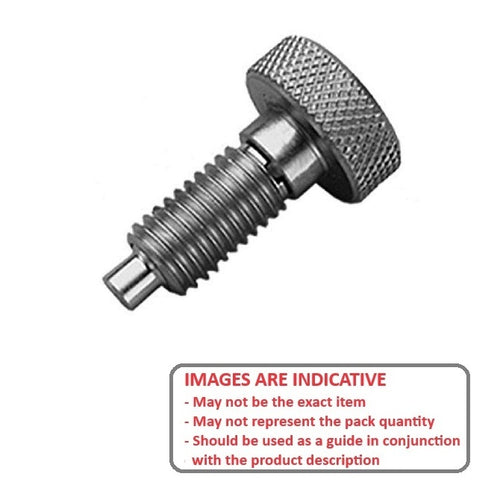

Plungers - Spring - Knurled Handle - Non Locking - Stainless

Stainless Non Locking Knurled Handle Spring Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

  • A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
  • Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
  • Also known as ball plungers or spring-loaded pins.

Product Data

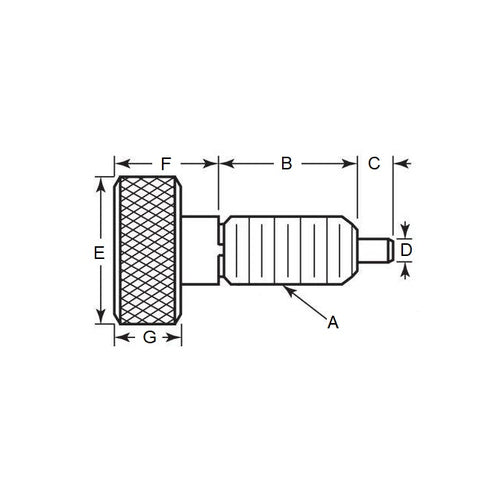

  • Thread Size (A) : 10-32 UNF (4.76mm)
  • Thread Length (B) 10.2 mm
    (Equiv. 0.402 in.)
  • Initial Pressure (F1) 2.2 N
  • Final Pressure (F2) 13.4 N
  • Tip Diameter (D) 2.6 mm
  • Tip Length (C) 2.4 mm
  • Head Length (F) 6.4
  • Additional With Locking Element
  • Material Stainless Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 84935A36
  • PHR0SS
  • PHR-0SS
