PLST-048F-102-HKC-013 - Datasheet
MBA
Category Information

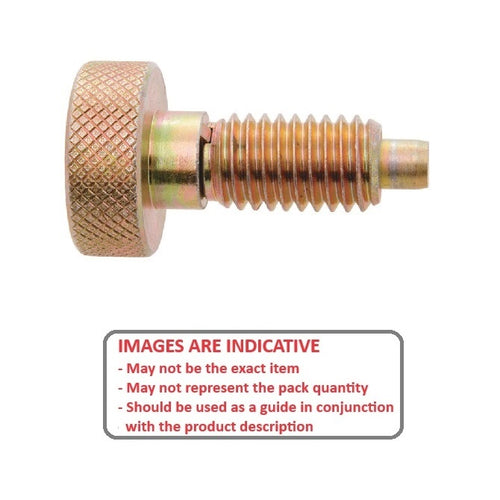

Plungers - Spring - Knurled Handle - Non Locking - SteelSteel Non Locking Knurled Handle Spring Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (A) : 10-32 UNF (4.76mm)
- Thread Length (B)
10.2
mm
(Equiv. 0.402 in.) - Initial Pressure (F1) 2.2 N
- Final Pressure (F2) 13.4 N
- Tip Diameter (D) 2.6 mm
- Tip Length (C) 2.4 mm
- Head Length (F) 6.4
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 84915A44
- PHR-00
- PHR00
