IN-RIV-048F-057-R - Datasheet

MBA

Category Information

Inserts - Rivet Nuts - Klik - Ribbed

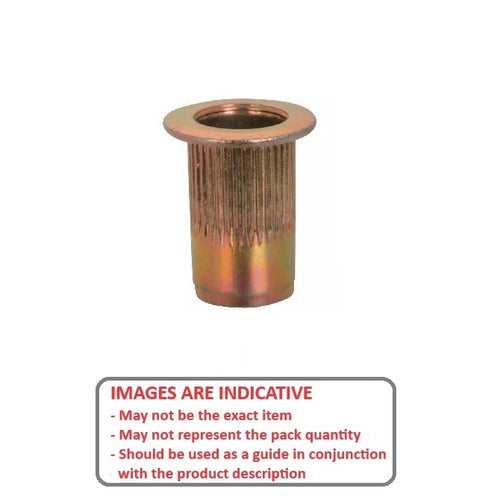

Ribbed Klik Rivet Nuts Inserts. Individual Inserts for use with the Klik Thread Setter Tool

  • One-piece, internally threaded fastener that creates a permanent, reusable thread in a material, from only one side.
  • Installed using a special tool that grips the insert and pulls a mandrel, which causes the nut's body to deform and grip the hole. This allows a bolt to be threaded into the insert to join components together.
  • Also known as a nutsert or rivnut.
  • These blind threaded inserts offer strong torque and pull out characteristics. Especially effective in sheet metal and other thin material.
  • Insert is placed into the hole in the parent material and crimped up with the installation tool.
  • Installs from one side - no tapping required. Installs almost flush eliminating the need for countersinking.
  • Made from plated steel.

Product Data

  • Internal Thread : 10-32 UNF (4.76mm)
  • Drill Hole Size 7.54 mm
    (Equiv. 0.297 in.)
  • Grip Range 3.30 - 5.72 mm
    (Equiv. 0.13 in.)

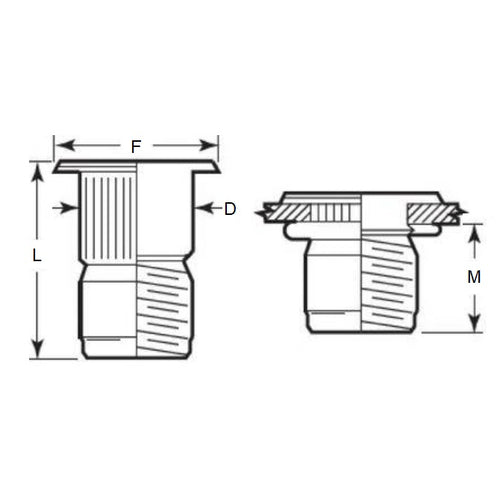

  • Body Diameter (D) 7.52 mm
  • Flange Diameter (F) 10.16 mm
  • L 15.088 mm
  • M 7.620 mm
  • 3.30 - 5.72
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 95105A139
  • ALC-47342
  • ALC47342
View full details
