Miniature Bearings Australia
FL-10-W300 - Datasheet
MBA
Category Information

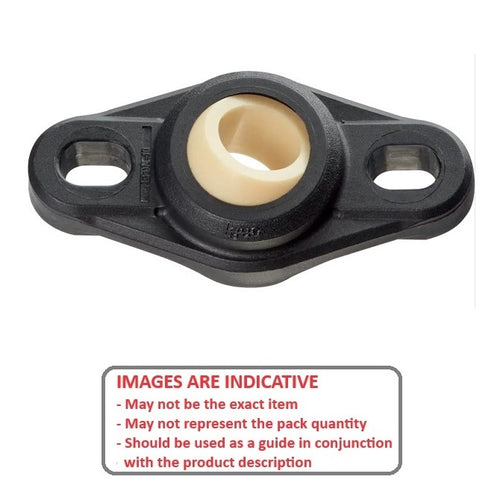

Housing and Bearing Assembly - Flanged 2 Bolt - Aligning - W300W300 Self Aligning Flanged 2 Bolt Housing Assembly. With integral self aligning plain bearing.
- Housing: Igumid G.
- Ball: Highly wear resistant Iglidur W300.
Product Data
- Nominal Shaft Size
:
10.00
mm

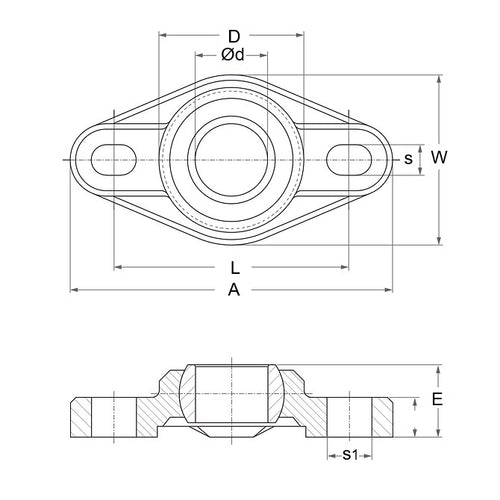

(Equiv. 0.394 in.) - Overall Length (A)
36.000
mm
(Equiv. 1.417 in.) - Overall Height (E) 12.000 mm
- Min to Max Shaft Dia. 24 mm
- Base Height (D) 6.500 mm
- Bolt Hole Size (s) 5.3 x 8.0 mm
- Bolt Hole Centres (L) 26.000 mm
- Material Plastic
Product Compliance and Data
Additional Resources
Cross References
- Igus EFOM-10
- EFOM10
- I-704
- I704
