KM048C-032-CS19 - Datasheet

MBA

Product Data

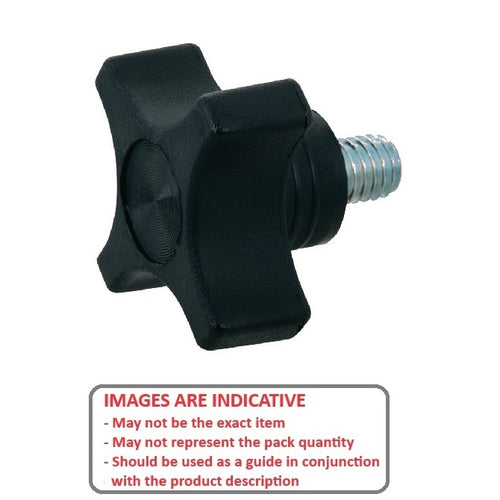

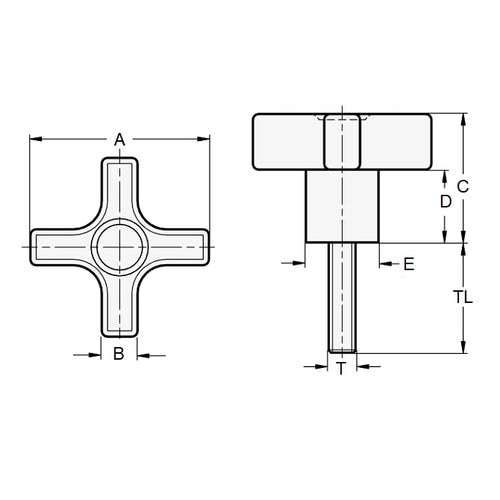

• Thread Size : 10-24 UNC (4.76mm)
• Head Diameter (A) 31.75 mm
  (Equiv. 1.25 in.)
• Thread Length 19.1 mm
  (Equiv. 0.752 in.)
• Knob Length (C) 22.23 mm
• Hub Diameter (E) 15.88 mm
• Hub Length (D) 9.53 mm
• Material Plated Steel
