KM048C-025-3L - Datasheet
MBA
Category Information

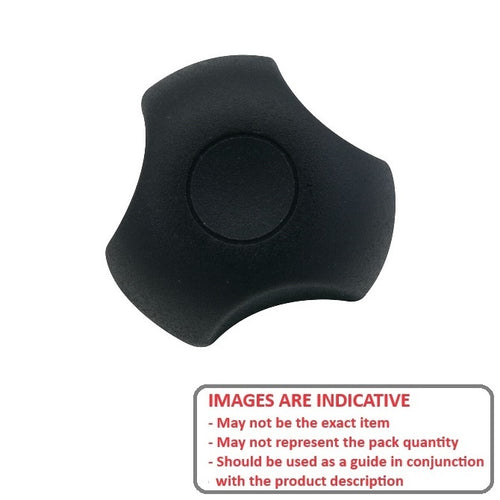

Knobs - Lobe - Three Lobe - Male - StandardStandard Male Three Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 10-24 UNC (4.76mm)

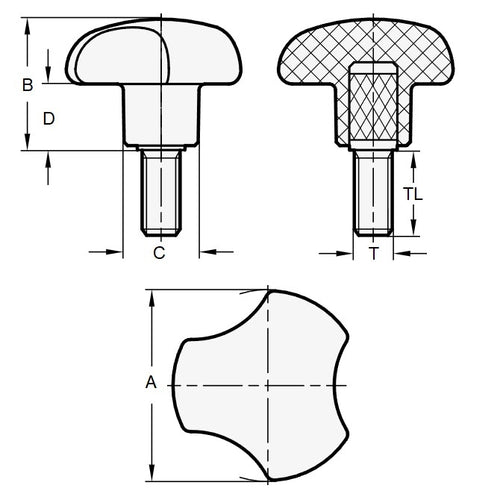

- Head Diameter (A)
24.89
mm
(Equiv. 0.98 in.) - Thread Length
19.1
mm
(Equiv. 0.752 in.) - Colour Black
- Hub Diameter (C) 12.95 mm
- Hub Length (D) 5.08 mm
- Knob Height (B) 16.00 mm
- Material Plated Steel
Product Compliance and Data
Additional Resources
Cross References
- RST127
- RST-127
