KF048C-019-TPST - Datasheet

MBA

Category Information

Knobs - Ball - Female Threaded - Polished Steel

Polished Steel Female Threaded Ball Knobs. Low carbon steel 12L14

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread or Hole Size : 10-24 UNC (4.76mm)
  • Diameter 19.05 mm
    (Equiv. 0.75 in.)
  • Thread Minimum Depth 9.5 mm
    (Equiv. 0.374 in.)
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 6045K31
  • SB-1-45
  • SB1
  • SB145
View full details

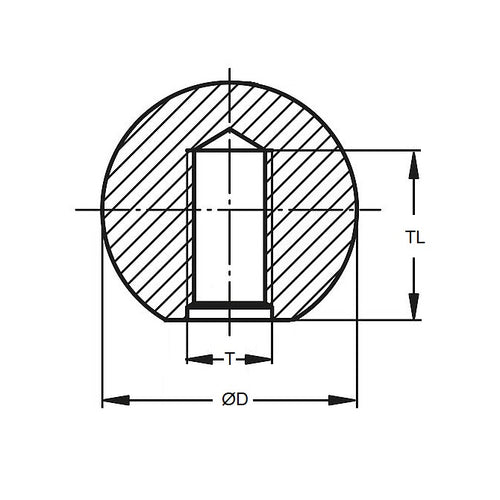

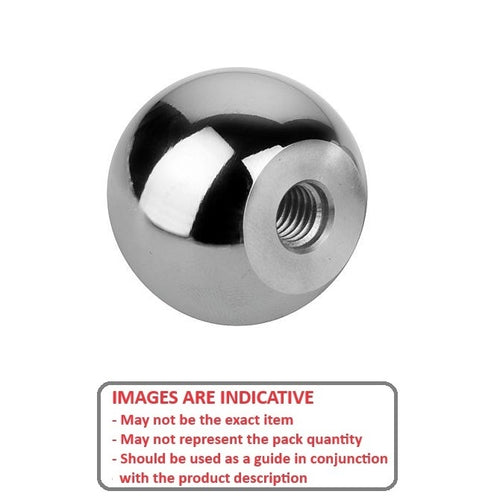

KF048C-019-TPSTDiagramKF048C-019-TPSTImage
