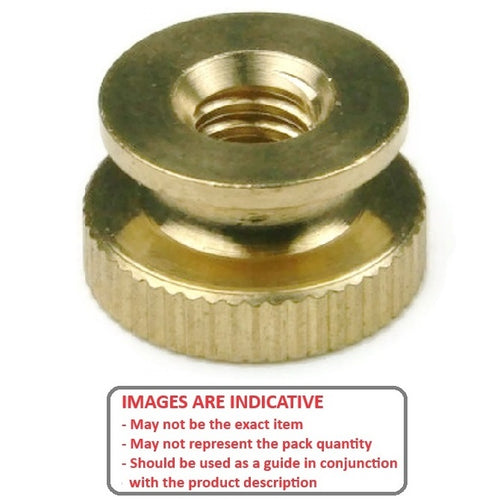

NT048C-THC-BR - Datasheet

MBA

Product Data

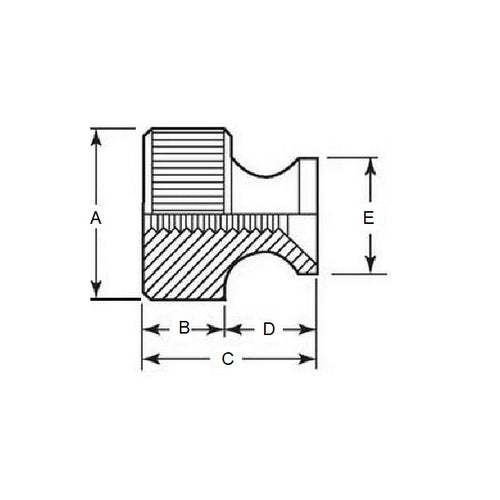

• Thread Size : 10-24 UNC (4.76mm)
• Overall Length (C) 8.7 mm
  (Equiv. 0.343 in.)
• Head Width (B) 3.97 mm
  (Equiv. 0.156 in.)
• Head Diameter (A) 12.70 mm
• Collar Diameter (E) 10.32 mm
• Collar Height (D) 4.76 mm
• Material Brass

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC
