SS048C-0064-S6 - Datasheet
Brighton Best
Category Information

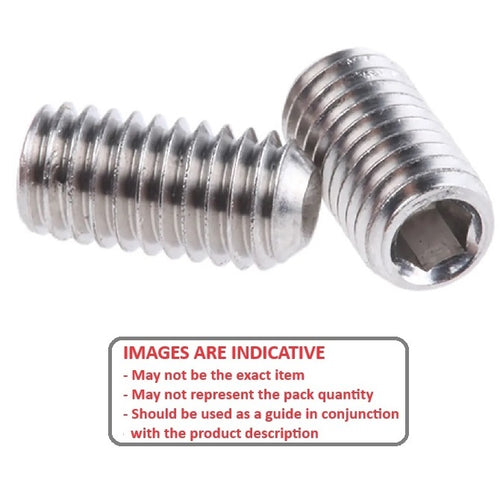

Socket Set Screws - Standard Cup Point - 316 Stainless Steel DIN916316 Stainless Steel DIN916 Standard Cup Point Socket Set Screws. Standard grub screws. UNC - UNF - BA - METRIC.
- Socket driven grub screw with a standard cup point.

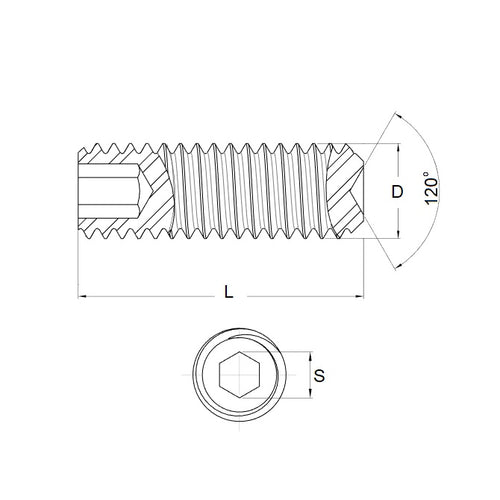

Product Data
- Thread Size : 10-24 UNC (4.76mm)
- Thread Length (L)
6.4
mm
(Equiv. 0.252 in.) - Type Standard Cup Point
- Hex Key Size 2.38 (3/32)
- Pitch 1.058 mm
- Threads Per Inch 24 TPI
- Material Stainless Steel 316 (Similar to A4, 18-10)
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 104084
- 92313A238
